Specification

10Gb/s SFP+ Active Optical Cable

PHAOC192XX SFP+ AOC

Features

  • FLow power consumption <0.35W per end
  • Electrical interface compliant to SFF-8431
  • Up to 300m on OM3 MMF
  • 850nm VCSEL transmitter, PIN photo-detector receiver
  • Operating case temperature 0 °C to +70°C
  • 3.3V power supply voltage
  • RoHS 6 compliant
  • Hot Pluggable SFP+ form factor
  • good EMI performance

Applications

  • 10 Gigabit Ethernet
  • 1x InfiniBand QDR. DDR, SDR
  • High-performance computing clusters
  • 4G and 8G Fibre Channel Applications
  • Servers, switches, storage,host card adapters and data center

Description

The SFP+ Active Optical Cables are direct-attach fiber assemblies with SFP+

connectors. They have very good power consumption performance. They are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks. SFP+ Active Optical Cables’ length is up to 300 meters on OM3 MMF.

Absolute Maximum Ratings

The operation in excess of any absolute maximum ratings might cause permanent damage to this module.

Parameter

Symbol

Min

Max

Unit

Note

Storage Temperature

TST

-20

85

degC



Relative Humidity(non-condensing)

RH

0

85

%



Operating Case Temperature

TOPC

0

70

degC



Supply Voltage

VCC

-0.3

3.6

V



Input Voltage

Vin

-0.3

Vcc+0.3

V



Recommended Operating Conditions and Supply Requirements

Parameter

Symbol

Min

Typical

Max

Unit

Operating Case Temperature

TOPC

0



70

degC

Power Supply Voltage

VCC

3.13

3.3

3.47

V

Power Consumption



-



0.35

W

Data Rate

DR



10.3



Gbps

Data Speed Tolerance

∆DR

-100



+100

ppm

Optical Characteristics

All parameters are specified under the recommended operating conditions with PRBS31 data pattern unless otherwise specified.

Electrical Specifications

Parameter

Symbol

Min

Typical

Max

Unit

Notes

Transmitter

Center Wavelength

λC

840

850

860

Nm



Average optical Power

PAVG

-6



dBm



Differential output voltage amplitude

ΔVout

500



800

mVp-p



Rise/Fall Time

Tr/Tf



50

p



Extinction Ratio

ER

3.5





d



Relative Intensity Noise

Rin



-128

dB/Hz



Optical Return Loss Tolerance

TOL





12

dB



Transmitter Reflectance

RT



-12

d



Receiver

Center Wavelength

λC

840

850

860

Nm



Overload, each lane

OVL



dBm



Receiver Sensitivity in OMA, each Lane

SEN



-11

dBm



Electrical Specifications

Parameter

Symbol

Min

Typical

Max

Unit

Differential input impedance

Zin

90

100

110

ohm

Differential Output impedance

Zout

90

100

110

ohm

Differential input voltage amplitude

ΔVin

100



1800

mVp-p

Differential output voltage amplitude

ΔVout

400



800

mVp-p

Bit Error Rate

BR



E-12

Input Logic Level High

VIH

2.0



VCC

V

Input Logic Level Low

VIL

0



0.8

V

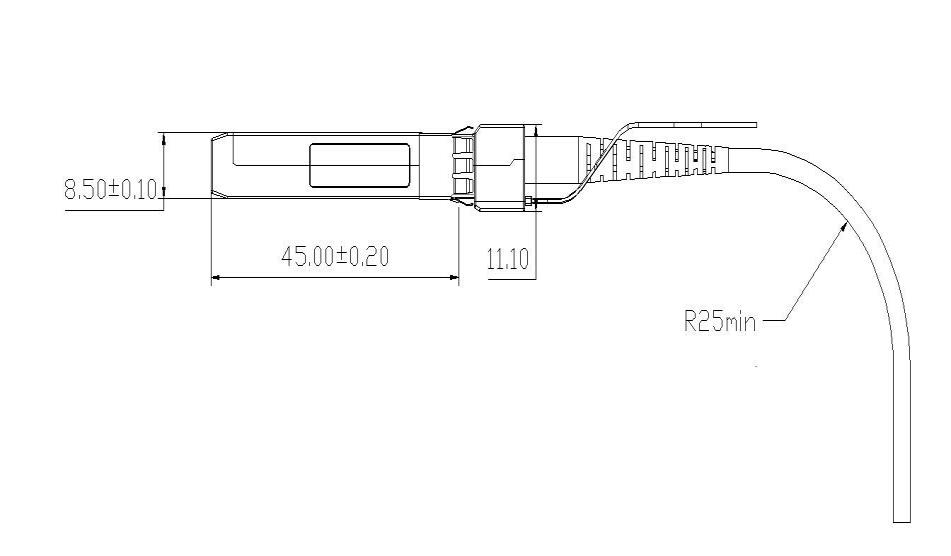

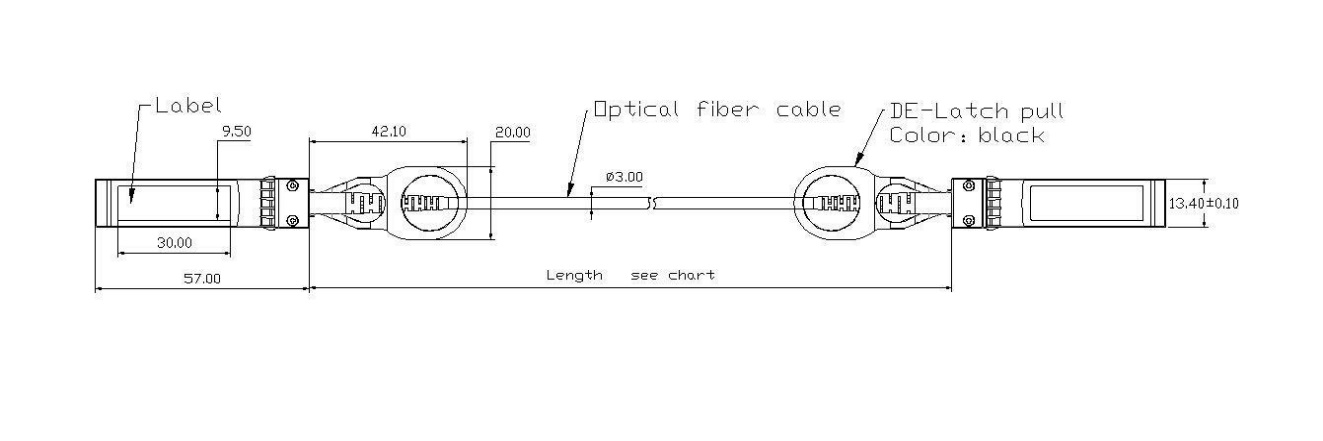

Mechanical Dimensions

ESD

This transceiver is specified as ESD threshold 1KV for high speed data pins and 2KV for all others electrical input pins, tested per MIL-STD-883, Method 3015.4 /JESD22-A114-A (HBM). However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment.

Order Information

Part Number

Product Description

DSPAOC19201

1 meter SFP+ Active Optical Cable

DSPAOC19202

2 meter SFP+ Active Optical Cable

DSPAOC19207

7 meter SFP+ Active Optical Cable

DSPAOC19210

10 meter SFP+ Active Optical Cable

DSPAOC192A0

100 meter SFP+ Active Optical Cable

Notes:

where "xx" denotes cable length in meters. Examples are as follows:
xx = 03 for 3m, xx = 10 for 10m, xx = 50 for 50m, xx = A0 for 100m
