Dongguan Phynam Comtech Co.,Limited
10Gb/s SFP+ Active Optical Cable
PHAOC192XX SFP+ AOC
Features
Applications
Description

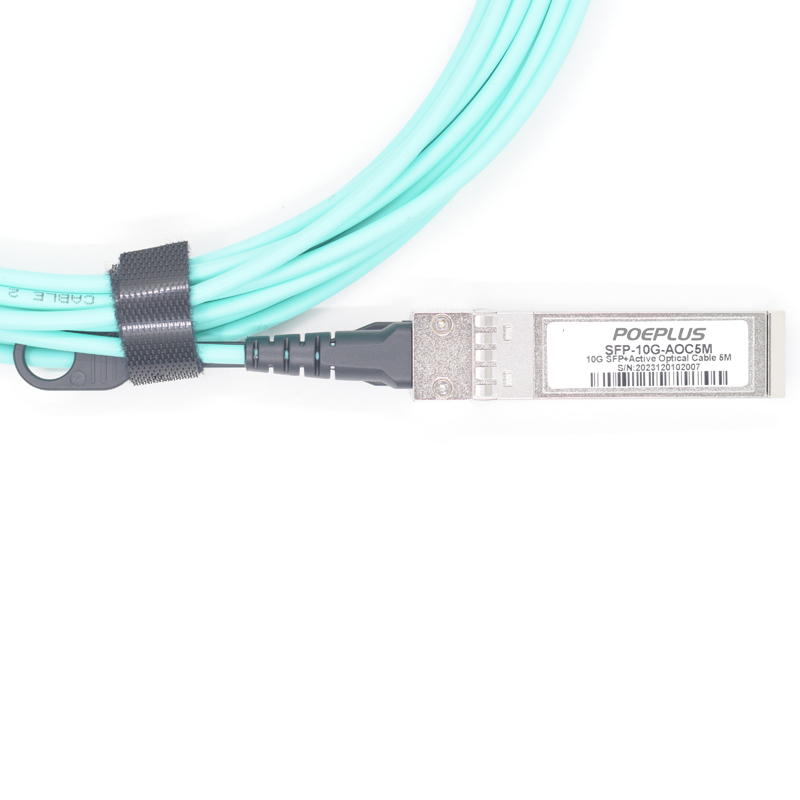

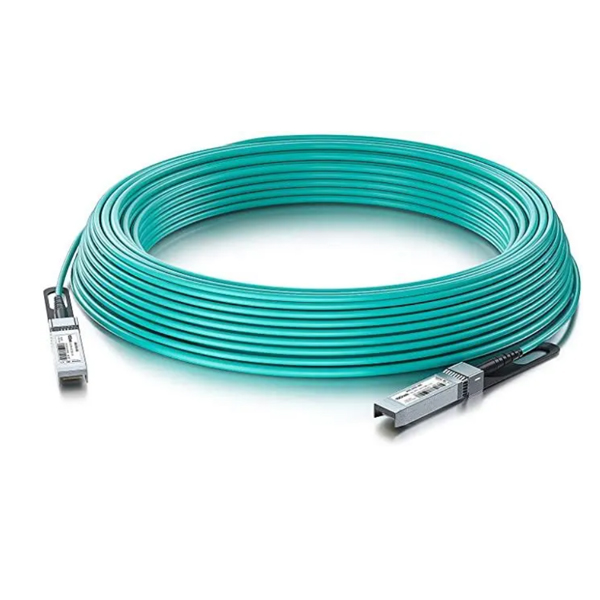

The SFP+ Active Optical Cables are direct-attach fiber assemblies with SFP+
connectors. They have very good power consumption performance. They are suitable for very short distances and offer a cost-effective way to connect within racks and across adjacent racks. SFP+ Active Optical Cables’ length is up to 300 meters on OM3 MMF.
Absolute Maximum Ratings
The operation in excess of any absolute maximum ratings might cause permanent damage to this module.
|
Parameter |
Symbol |
Min |
Max |
Unit |
Note |
|
Storage Temperature |
TST |
-20 |
85 |
degC |
|
|
Relative Humidity(non-condensing) |
RH |
0 |
85 |
% |
|
|
Operating Case Temperature |
TOPC |
0 |
70 |
degC |
|
|
Supply Voltage |
VCC |
-0.3 |
3.6 |
V |
|
|
Input Voltage |
Vin |
-0.3 |
Vcc+0.3 |
V |
Recommended Operating Conditions and Supply Requirements
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
Operating Case Temperature |
TOPC |
0 |
70 |
degC |
|
|
Power Supply Voltage |
VCC |
3.13 |
3.3 |
3.47 |
V |
|
Power Consumption |
- |
0.35 |
W |
||
|
Data Rate |
DR |
10.3 |
Gbps |
||
|
Data Speed Tolerance |
∆DR |
-100 |
+100 |
ppm |
Optical Characteristics
All parameters are specified under the recommended operating conditions with PRBS31 data pattern unless otherwise specified.
Electrical Specifications
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
Notes |
|
|
Transmitter |
|||||||
|
Center Wavelength |
λC |
840 |
850 |
860 |
Nm |
||
|
Average optical Power |
PAVG |
-6 |
dBm |
||||
|
Differential output voltage amplitude |
ΔVout |
500 |
800 |
mVp-p |
|||
|
Rise/Fall Time |
Tr/Tf |
50 |
p |
||||
|
Extinction Ratio |
ER |
3.5 |
|
d |
|||
|
Relative Intensity Noise |
Rin |
-128 |
dB/Hz |
||||
|
Optical Return Loss Tolerance |
TOL |
|
12 |
dB |
|||
|
Transmitter Reflectance |
RT |
-12 |
d |
||||
|
Receiver |
|||||||
|
Center Wavelength |
λC |
840 |
850 |
860 |
Nm |
||
|
Overload, each lane |
OVL |
dBm |
|||||
|
Receiver Sensitivity in OMA, each Lane |
SEN |
-11 |
dBm |
||||
Electrical Specifications
|
Parameter |
Symbol |
Min |
Typical |
Max |
Unit |
|
Differential input impedance |
Zin |
90 |
100 |
110 |
ohm |
|
Differential Output impedance |
Zout |
90 |
100 |
110 |
ohm |
|
Differential input voltage amplitude |
ΔVin |
100 |
1800 |
mVp-p |
|
|
Differential output voltage amplitude |
ΔVout |
400 |
800 |
mVp-p |
|
|
Bit Error Rate |
BR |
E-12 |
|||
|
Input Logic Level High |
VIH |
2.0 |
VCC |
V |
|
|
Input Logic Level Low |
VIL |
0 |
0.8 |
V |
|
Mechanical Dimensions
ESD
This transceiver is specified as ESD threshold 1KV for high speed data pins and 2KV for all others electrical input pins, tested per MIL-STD-883, Method 3015.4 /JESD22-A114-A (HBM). However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment.
Order Information
|
Part Number |
Product Description |
|
DSPAOC19201 |
1 meter SFP+ Active Optical Cable |
|
DSPAOC19202 |
2 meter SFP+ Active Optical Cable |
|
DSPAOC19207 |
7 meter SFP+ Active Optical Cable |
|
DSPAOC19210 |
10 meter SFP+ Active Optical Cable |
|
DSPAOC192A0 |
100 meter SFP+ Active Optical Cable |
Notes:
where "xx" denotes cable length in meters. Examples are as follows:
xx = 03 for 3m, xx = 10 for 10m, xx = 50 for 50m, xx = A0 for 100m
