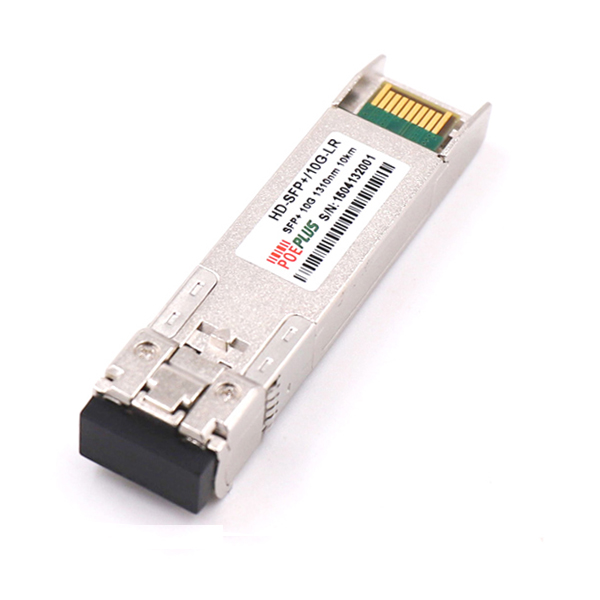

HD-SFP+ 10G-LR Specification

Features

- Optical interface compliant to IEEE 802.3ae 10GBASE-LR
- Electrical interface compliant to SFF-8431
- Hot Pluggable
- Maximum link length of 20Km on SMF
- Low power consumption
- All-metal housing for superior EMI performance
- Advanced firmware allow customer system encryption
- information to be stored in transceiver
- Cost effective SFP+ solution, enables higher port densities and greater bandwidth
- RoHS6 compliant (lead free)
- Operating case temperature:

Commercial : -5 to +70℃

Extended: -20~80℃

Industrial : -40 to +85℃

Applications

- 10GBASE-LR/LW 10G Ethernet
- 1200-SM-LL-L 10G Fiber Channel
- 10G SONET
- Other optical links

Description

HD-SFP+/10G-LR 10Gb/s SFP+ transceivers are designed for use in 10-Gigabit Ethernet links up to 20km over Single Mode fiber.

Module Block Diagram

Absolute Maximum Ratings

Parameter		Symbol	Min.	Typical	Max.	Unit
Power Supply Voltage		V_CC	0		3.6	V
Storage Temperature		Ts	-40		+85	C
Operating Case Temperature	Commercial	Tc	-5		+70	°C
	Extended		-20		+80	°C
	Industrial		-40		+85	°C
Relative Humidity		RH	0		85	%
RX Input Average Power		Pmax	-		0	dBm

Recommended Operating Environment:

Parameter	Symbol	Min.	Typical	Max.	Unit
Power Supply Voltage	V_CC	3.135	3.3	3.465	V
Power Supply Current	Icc			300	mA
Operating Case Temperature	T_C	-40		85	C
Bit Rate	BR	9.953 10GBASE-LW			Gb/s
		10.3125 10GBASE-LR
		8.5 800-SM-LC-L
		10.51875 1200-SM-LL-L

Electrical Characteristics

Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Supply Voltage	Vcc	3.0	3.30	3.60	V
Supply Current	Icc		160	280	mA
Transmitter Section:
Input differential impedance	R_in	90	100	110		
Single ended data input swing	V_{in PP}	180		700	mVp-p
Transmit Disable Voltage	V_D	Vcc – 1.3		Vcc	V
Transmit Enable Voltage	V_EN	Vee		Vee+ 0.8	V
Receiver Section:
Single ended data output swing	Vout,pp	300		850	mv	2,6
Data output rise time	t_r				ps	3
Data output fall time	t_f				ps	3
LOS Fault	V_losfault	Vcc – 0.5		V_{CC_host}	V	4
LOS Normal	V_{los norm}	V_ee		V_ee+0.5	V	4

Notes:

1. Connected directly to TX data input pins. AC coupling from pins into laser driver IC.

2. Into 100Ω differential termination.

3. 20 – 80%. Measured with Module Compliance Test Board and OMA test pattern. Use of four 1’s and four 0’s sequence in the PRBS 9 is an acceptable alternative. SFF-8431 Rev 4.1.

4. LOS is an open collector output. Should be pulled up with 4.7kΩ – 10kΩ on the host board. Normal operation is logic 0; loss of signal is logic 1.

5. See Section 2.8.3 of SFF-8431 Rev 4.1

Optical Parameters

Parameter	Symbol	Min.	Typical	Max.	Unit	Note
Transmitter Section:
Center Wavelength	λt	1260	1310	1355	nm
Side Mode Suppression Ratio	SMSR	30	-	-	dB
Average Optical Power	Pavg	-5.0	-2.5	+1	dBm
Optical Power OMA	Poma	-4.0	-	-	dBm
Laser Off Power	Poff	-	-	-30	dBm
Extinction Ratio	ER	3.5	-	-	dB
Transmitter Dispersion Penalty	TDP	-	-	3.2	dB
Relative Intensity Noise	Rin	-	-	-128	dB/Hz	12dB reflection
Optical Return Loss Tolerance		-	-	12	dB
Receiver Section:
Center Wavelength	λr	1260	1310	1355	nm
Receiver Sensitivity in Average Power	Sen			-14.4	dBm	1
Receiver Sensitivity (OMA)	Sen-oma	-	-	-12.6	dBm	2
Stressed Sensitivity (OMA)		-	-	-10.3	dBm	2
Vertical eye closure penalty		2.2	-	-	dB	3
Los Assert	LosA	-30	-	-	dBm
Los Dessert	LosD	-	-	-16	dBm
Los Hysteresis	LosH	0.5	-	-	dB
Overload	Pin	-	-	0.5	dBm	1
Receiver Reflectance		-	-	-12	dB
Stressed eye jitter		0.3	-	-	UIp-p	2
Receive electrical 3dB upper cutoff frequency		-	-	12.3	GHz
Receiver power (damage)		-	-	1.5	dBm

Notes:

Average optical power shall be measured using the methods specified in TIA/EIA-455-95.
Receiver sensitivity is informative. Stressed receiver sensitivity shall be measured with conformance test signal for BER =1x 10^-12.
Vertical eye closure penalty and stressed eye jitter are the test conditions for measuring stressed receiver sensitivity. They are not the required characteristic of the receiver.
Power budget is defined as the different between the Rx sensitivity and the Tx output power of the interface.
Path penalty is intended as the power penalty of the interface between back-to-back and the maximum applied dispersion.

Timing Characteristics:

Parameter	Symbol	Min.	Typical	Max.	Unit
TX_Disable Assert Time	t_off			10	us
TX_Disable Negate Time	t_on			1	ms
Time to Initialize Include Reset of TX_FAULT	t_int			300	ms
TX_FAULT from Fault to Assertion	t_fault			100	us
TX_Disable Time to Start Reset	t_reset	10			us
Receiver Loss of Signal Assert Time	T_A,RX_LOS			100	us
Receiver Loss of Signal Deassert Time	T_d,RX_LOS			100	us
Rate-Select Change Time	t_ratesel			10	us
Serial ID Clock Time	t_serial-clock			100	kHz

Digital Diagnostic Monitor Characteristics

The following digital diagnostic characteristics are defined over the Recommended Operating Environment unless otherwise specified. It is compliant to SFF8472 Rev10.2 with internal calibration mode. For external calibration mode please contact our sales stuff.

Parameter	Symbol	Min.	Max.	Unit
Temperature monitor absolute error	DMI_Temp	-3	3	degC
Laser power monitor absolute error	DMI_TX	-3	3	dB
RX power monitor absolute error	DMI_RX	-3	3	dB
Supply voltage monitor absolute error	DMI_VCC	-0.08	0.08	V
Bias current monitor absolute error	DMI_Ibias	-10%	10%	mA

Pin Assignment:

Pin Descriptions

PIN	Logic	Symbol	Name / Description	Note
1		VeeT	Module Transmitter Ground	1
2	LVTTL-O	TX_Fault	Module Transmitter Fault
3	LVTTL-I	TX_Dis	Transmitter Disable; Turns off transmitter laser output
4	LVTTL-I/O	SDA	2-Wire Serial Interface Data Line	2
5	LVTTL-I	SCL	2-Wire Serial Interface Clock	2
6		MOD_DEF0	Module Definition, Grounded in the module
7	LVTTL-I	RS0	Receiver Rate Select
8	LVTTL-O	RX_LOS	Receiver Loss of Signal Indication Active LOW
9	LVTTL-I	RS1	Transmitter Rate Select (not used)
10		VeeR	Module Receiver Ground	1
11		VeeR	Module Receiver Ground	1
12	CML-O	RD-	Receiver Inverted Data Output
13	CML-O	RD+	Receiver Data Output (not used)
14		VeeR	Module Receiver Ground	1
15		VccR	Module Receiver 3.3 V Supply
16		VccT	Module Receiver 3.3 V Supply
17		VeeT	Module Transmitter Ground	1
18	CML-I	TD+	Transmitter Non-Inverted Data Input
19	CML-I	TD-	Transmitter Inverted Data Input
20		VeeT	Module Transmitter Ground	1

SFP+ Module PIN Definition

Notes:

1. Module ground pins GND are isolated from the module case.

2. Shall be pulled up with 4.7K-10Kohms to a voltage between 3.15V and 3.45V on the host board.

Recommended Power Interface Circuit

Host - Transceiver Interface Block Diagram

Mechanical Dimensions

Ordering information

Part Number	Product Description
HD-SFP+/10G-LR	1310nm, 10Gbps, 20Km, SFP+ Transceiver -5ºC ~ +70ºC .
HD-SFP+/10G-LR-E	1310nm, 10Gbps, 20Km, SFP+ Transceiver -20ºC ~ +80ºC .
HD-SFP+/10G-LR-I	1310nm, 10Gbps, 20Km, SFP+ Transceiver -40ºC ~ +85ºC .

References

1. “Specifications for Enhanced Small Form Factor Pluggable Module SFP+”,SFF-8431, Rev 4.1, July 6, 2009.

2. “Improved Pluggable Formfactor”,SFF-8432, Rev 4.2,Apr 18,2007

3. IEEE802.3ae – 2002

4. “Diagnostic Monitoring Interface for Optical Transceivers” SFF-8472, Rev 10.2, June 1, 2007

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by Handar before they become applicable to any particular order or contract. In accordance with the Handar policy of continuous improvement specifications may change without notice. The publication of information in this data sheet does not imply freedom from patent or other protective rights of Handar or others. Further details are available from any Handar sales representative.
