C6638

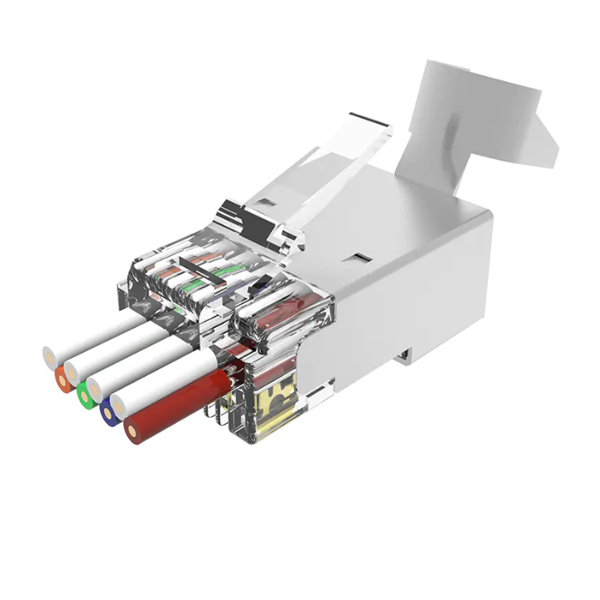

Cat6A passthrough RJ45 modular plug

Passthrough shielded with tail
Big diameter
Tested by salt spray
Pass fluke test

C6638 Overview

High quality thick diameter RJ45 modular plug solution, 6A types of shielded through hole RJ45 modular plug solution, different gold thickness complete, through hole design, more convenient assembly, with supporting sheath and high quality hand tools, stable and reliable quality;

C6638 Specification

● Performance compliant with ANSI/TIA.568B-2-D and ISO/IEC-11801

● With UL/CE certification

● Wire diameter: 22 ~ 26AWG, outer diameter: 6.0 ~ 8.5MM

● RJ45 modular plug：50μ" gold plating, other gold plating thickness is optional

● Color: Multiple colors are available

● Plug and unplug times: ≥1200 times

● Support 4PPoE (IEEE802.3bt/IEC60512-99-002) applications

● Operating temperature: -10 ~ 60℃

● Comply with RoHS and REACH
