Cat6A UTP RJ45 modular plug-FTTD -Fiber to the desk solution provider-25G/40G/100G SFP/network adapter/Media converter/AOC/DOC cable

C6626

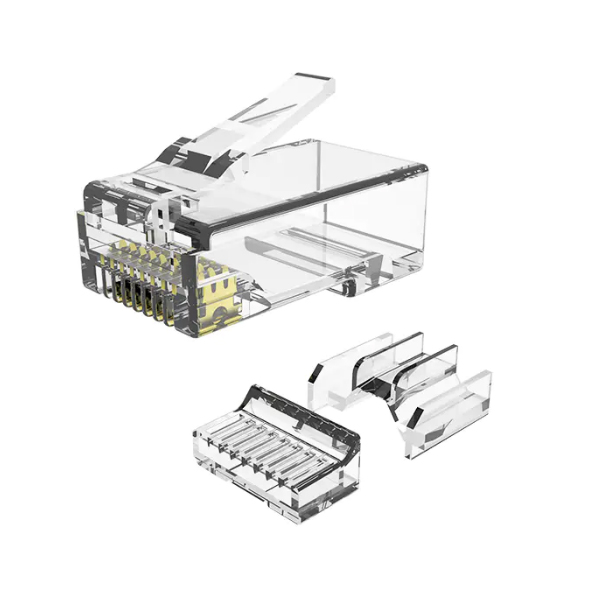

Cat6A UTP RJ45 modular plug

over pressure, salt spray test
RJ-45 phospho-copper alloy,
nickel plated 100μm,
gold plated 50μm,
plug and unplug 2000 times,

C6626 Overview

High quality thick diameter RJ45 modular plug solution, 6A types of shielded through hole RJ45 modular plug solution, different gold thickness complete, through hole design, more convenient assembly, with supporting sheath and high quality hand tools, stable and reliable quality;

C6626 Specification

● Performance compliant with ANSI/TIA.568B-2-D and ISO/IEC-11801

● With UL/CE certification

● Complete shielding and non-shielding specifications

● Crystal head 50μ" gold plating, other gold plating thickness is optional

● Color: Multiple colors are available

● Wire diameter: 24 ~ 26AWG

● Plug and unplug times: ≥1200 times

● Support 4PPoE (IEEE802.3bt/IEC60512-99-002) applications

● Comply with RoHS and REACH
