single mode indoor fiber cable

GJFJV single mode CABLE

Stranded non-metallic strength member structure ensure the cable endure larger tensile strength
The outer jacket material have many advantages such as anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
Aramid yarn as strength member make cable have excellent tensile strength
Indoor any purpose cable distribution

single mode indoor fiber cable Overview

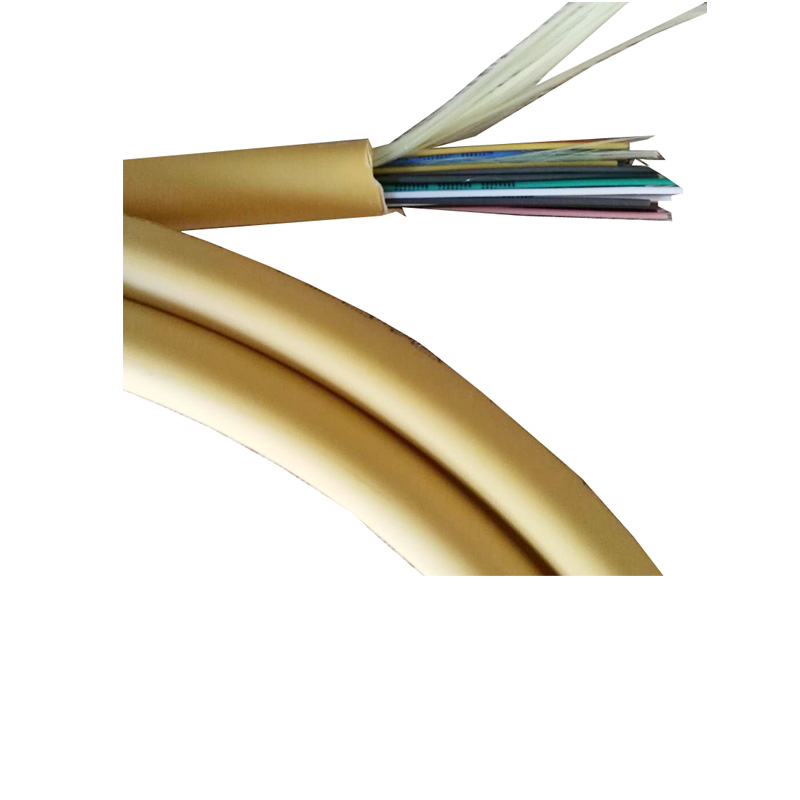

GJFJV multi-purpose optical cable uses a single-core optical cable (Φ900µm tightly coated optical fiber, aramide reinforcement element) as a sub-unit, non-metal center reinforcement core, cable sub-unit layer is twisted in the center reinforcement core to form the cable core, and the outermost extrusion of a layer of polyvinyl chloride (PVC) or low smoke halogen-free material (LSZH, low smoke, halogen-free, flame retardant) jacket.

single mode indoor fiber cable Specification

Comply with Standard YD/T 1258.4, ICEA-596, GR-409, IEC 60794-2-20/21, etc; and PVC cable meet the requirements of UL approval OFNR ; Different LSZH jacket meet IEC 60332-1 or IEC 60332-3C.

Specification

Fiber type	attenuation				OFL	Mode bandwidth	10G transmission distance	Minimum bending radius
Conditions	1310/1550nm		850/1300nm		850/1300nm	850nm	850nm	/
Conditions	Typical value	Maximum value	Typical value	Maximum value	850/1300nm	850nm	850nm	/
Unit	dB/km	dB/km	dB/km	dB/km	MHZ.km	MHZ.km	m	mm
G652D	0.36/0.22	0.5/0.4						16
G657A1	0.36/0.22	0.5/0.4						10
G657A2	0.36/0.22	0.5/0.4						7.5
50/125			3.0/1.0	3.5/1.5	≥500/500			30
62.5/125			3.0/1.0	3.5/1.5	≥200/500			30
OM3			3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	30
OM4			3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	30
BI-OM3			3.0/1.0	3.5/1.5	≥1500/500	≥2000	≤300	7.5
BI-OM4			3.0/1.0	3.5/1.5	≥3500/500	≥4700	≤550	7.5
