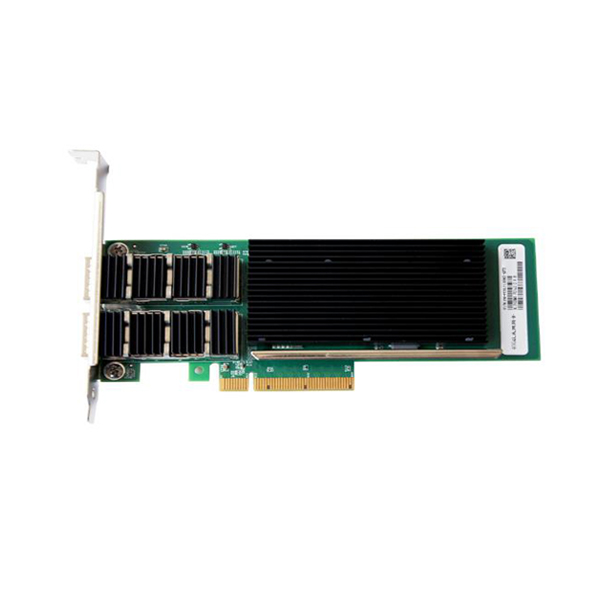

FTXL710BM2-QF2

40G dual ports fiber network adapter

Supports most Network operating system and can be widely deployed.
Supporting 802.3x flow control;
Support RSS/TX queues;
Support FCOE uninstallation;
Support QOS strategy;
Support 40Gbps dual fiber channel;
The interface standard supports PCI Express 3.0;
Support MSI, MSI-X, and VMDq queues;
Support ISCSI acceleration;

FTXL710BM2-QF2 Overview

FTXL710BM2-QF2 is an Ethernet 40G fiber network adapter with two 40G QSFP+interfaces, which can support 40Gbps transmission bandwidth and PCI-E X8 standard slots, ensuring efficient and stable operation of the network card. In addition, the network card also supports functions such as VLAN, QOS policy, and traffic control, making it suitable for applications in medium to large local area networks.

FTXL710BM2-QF2 Specification

Operating System Support

OS system

Windows Sever 2008 R2

Windows Sever 2012

Windows Sever 2012 R2

Windows Sever 2016

Windows Sever 2019

Linux RHEL 6x

Linux RHEL 7.x/8.0

Linux SLES 11.x

Linux SLES 12.x

Linux SLES 15.x

Ubuntu*14.xLTS

Ubuntu*16.xLTS

Ubuntu*18.xLTS

FreeBSD*10.X/11.X/12.X

●Basic parameters

Product Name	40G Network Card
Product model	FTXL710BM2-QF2
Processor chip	Intel XL710-BM2 chip
Bus type	PCI Express X8, compatible with PCI-E slots for X8 and X16
Port type:	2 QSFP+
Baffle plate height	Full height and half height
System interface type	System interface type PCIe v3.0 (8.0GT/s)
Power consumption	8.5W
Transmission medium	Fiber optic cable
Power supply	PCIe power supply
Transmission rate	40G
Certification	CE certification, ROHS certification, ISO9001 certification
The warranty period	Three years, with lifelong maintenance

●Technical Parameters

Network standard	IEEE802.3
ISCSI acceleration	support
QOS policy	support
FCOE uninstallation	support
RSS/TX queue	support
PXE	support
DPDK	support
Interrupt levels	INTA, MSI, MSI-X
Working temperature	0 ° C to 55 ° C (32 ° F to 131 ° F)
Storage temperature	-40 ° C to 70 ° C (-40 ° F to 158 ° F)
Storage humidity	35 ℃ 90% non condensing relative humidity
LED indicator	light flashing green (Act light) indicates data has passed
Unique features	Intel Virtualization Technology for Connectivity;
	Equipped with virtual machine device queue (VMDq) and SR-IOV;
	Advanced packet filtering by port;
	VLAN support and VLAN label insertion, removal, and packet filtering;
	ISCSI-acceleration, iSCSI-remote boot;
	Adapter fault tolerance and switch fault tolerance;
	Adaptive load balancing;

●Product Size

Item	Size	Unit	Error value
PCB length	167.51	mm	+/-0.13mm
PCB height	68.45	mm	+/-0.13mm
Baffle size
Half height card (in default)	18.42(W）x120.02（H）	mm	+/-0.27mm
Full height (optional)	18.42(W）x79.20（H）mm	mm	+/-0.27mm

Network Cabling

Optical Cabling

Media converter

Optical Transceiver SFP

Network adapter

DAC and AOC

FTXL710BM2-QF2

40G dual ports fiber network adapter

Thanks a lot for your inquiry and we will handle it as early as possible.

FTXL710BM2-QF2 Overview

FTXL710BM2-QF2 Specification

Operating System Support

Relevant Products

E810CAM2-QF2

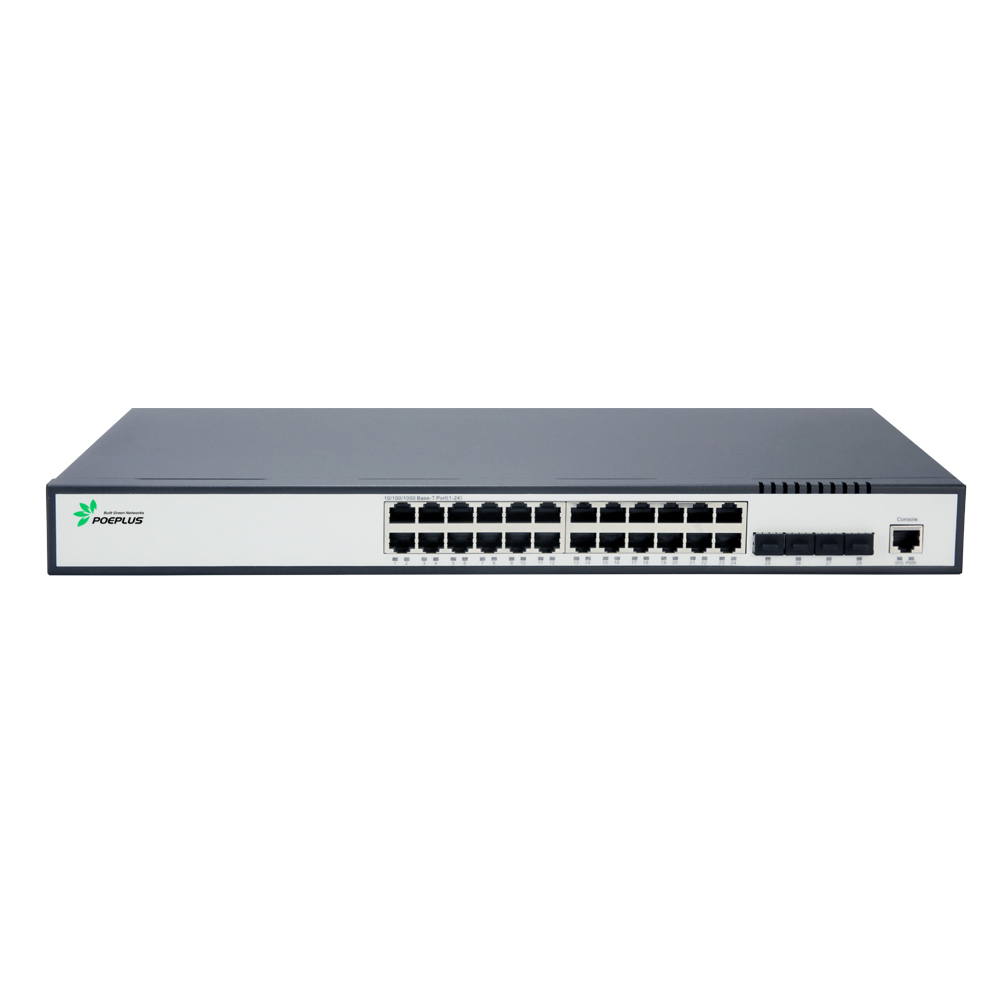

S5710-28TX（P）
