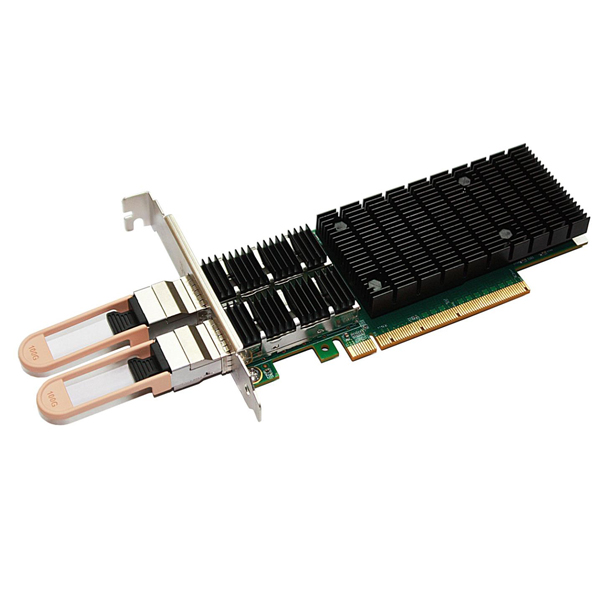

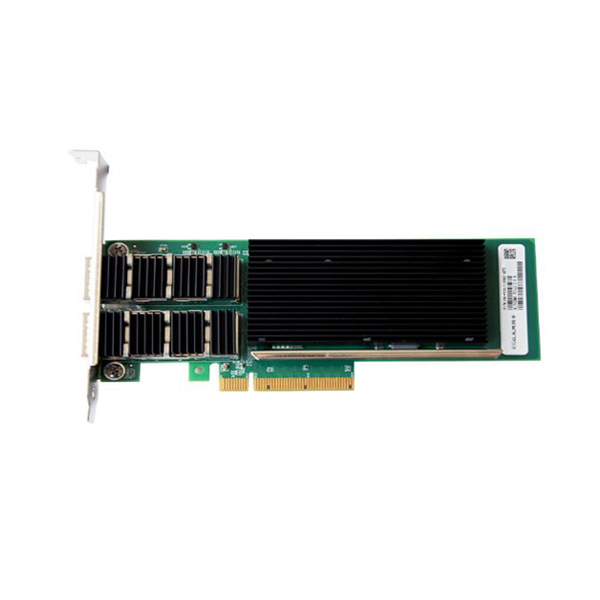

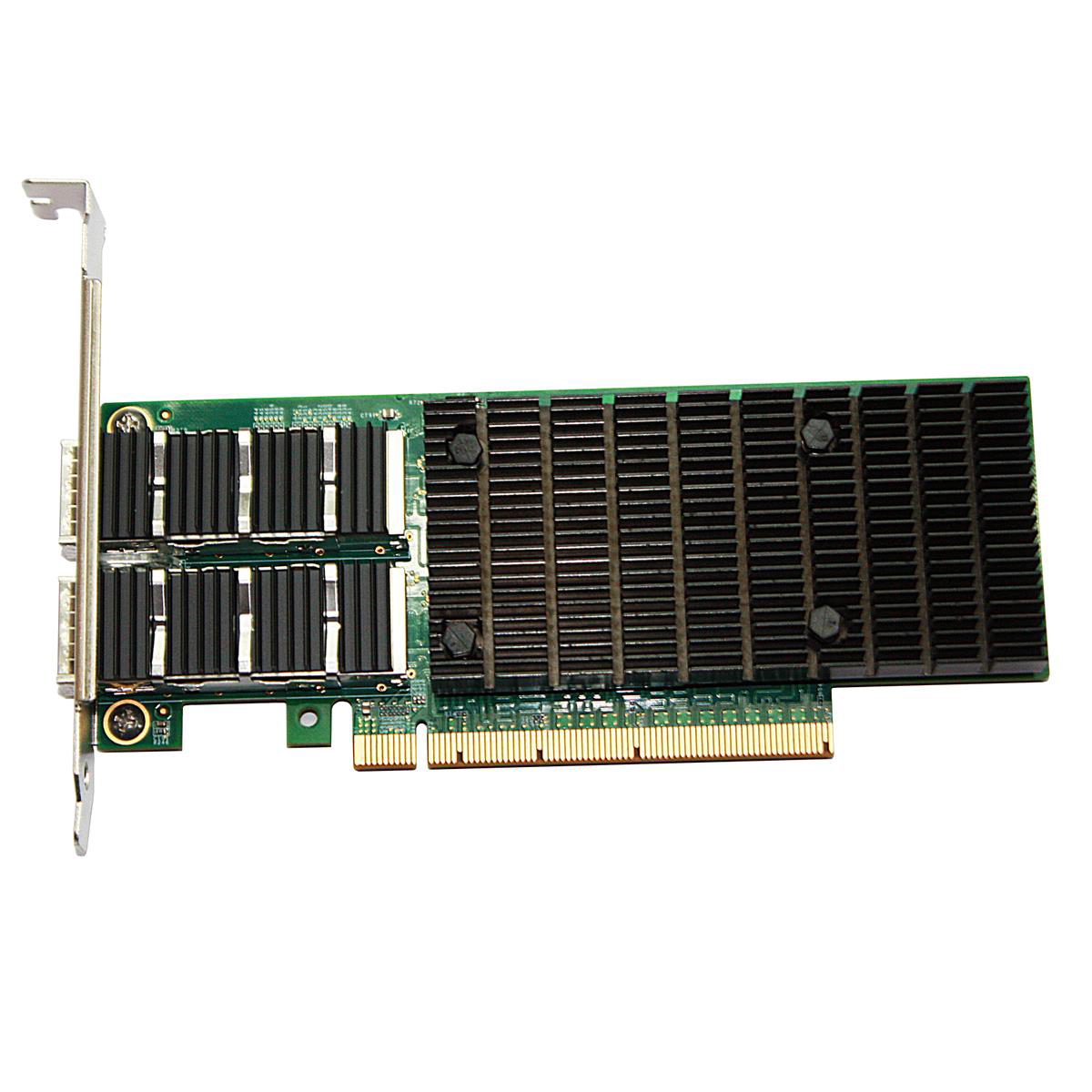

The DPC-E810CAM2-QF2 network card has a speed of 100G. It adopts a large heat sink to avoid the high temperature during the operation of the network card, and strengthens the heat dissipation of the network card itself. It adopts a 6-8 layer PCB board; the surface of the network card adopts tin spraying technology , to prevent the oxidation of bare copper and maintain the solderability; the network card components use the original regular materials, the power supply part uses the US TI, LTC power supply chips to determine the stability of the power supply to the network card; the slot gold finger uses 5μ immersion gold, contact More reliable, less loss, can effectively reduce packet loss and data delay, etc.
●Basic parameters
|
Product name |
100G dual optical port network card |
|
Product number |
DPC-E810CAM2-QF2 |
|
Processor chip |
Intel E810CAM2 100G Ethernet Controller |
|
Bus type |
PCI Express X16, X16 compatible PCI-E slot |
|
Port type |
2 100G QSFP28 ports |
|
Baffle height |
Full-height and half-height configurations |
|
System interface type |
PCIe 4.0 (16 GT/s) |
|
Power consumption |
100GbE maximum power consumption 20.8W |
|
Transmission medium type |
Lc fiber, complies with MMF 62.5/50 micron |
|
power supply |
PCIe powered |
|
Transmission rate |
100G |
|
Certification |
FCC certification, CE certification, ROHS certification, ISO9001 certification |
|
Warranty period |
Three-year warranty, lifetime maintenance |
●Technical Parameters
|
Network standard |
IEEE802.3 |
|
ISCSI acceleration |
support |
|
QOS strategy |
support |
|
FCOE offload |
support |
|
RSS/TX queue |
support |
|
PXE support |
Yes |
|
DPDK |
support |
|
Interrupt levels |
INTA, MSI, MSI-X |
|
Operating temperature |
0 °C to 55 °C (32 °F to 131 °F) |
|
storage temperature |
-40 °C to 70 °C (-40 °F to 158 °F) |
|
Storage humidity |
35℃ 90% non-condensing relative humidity |
|
LED indicator |
Blinking green light (Act light) indicates that there is data passing through |
|
Unique function |
Intel Virtualization Technology for Connectivity; With virtual machine device queue (VMDq) and SR-IOV; Advanced packet filtering (by port); VLAN support and VLAN tag insertion, removal and packet filtering; iSCSI acceleration, iSCSI remote boot; Adapter fault tolerance, switch fault tolerance; Adaptive load balancing; Group support; TCP checksum offload, TCP segment/large send offload, mitigation of interruptions; IPv6 offload |
●Product Size
|
Item |
Size |
Unit |
Deviation |
|
PCB length |
167.51 |
mm |
+/-0.13mm |
|
PCB height |
68.45 |
mm |
+/-0.13mm |
|
Baffle size |
+/-0.27mm |
||
|
Half-height card (standard) |
18.42(W)x79.20(H) |
mm |
|
|
Full height card (optional) |
18.42(W)x120.02(H) |
mm |
