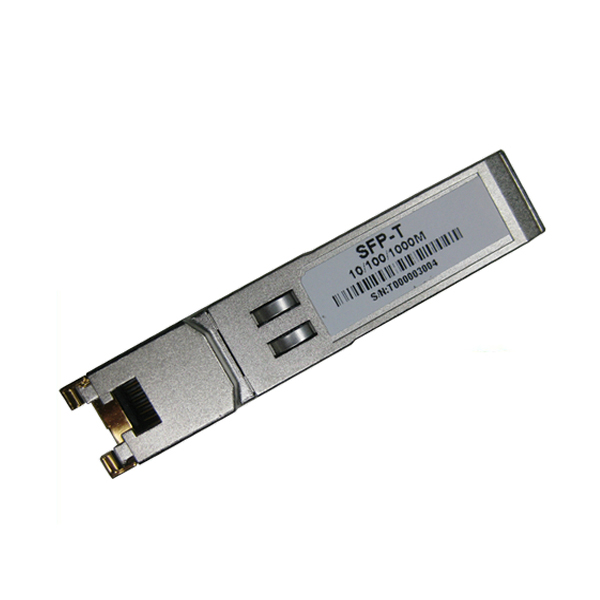

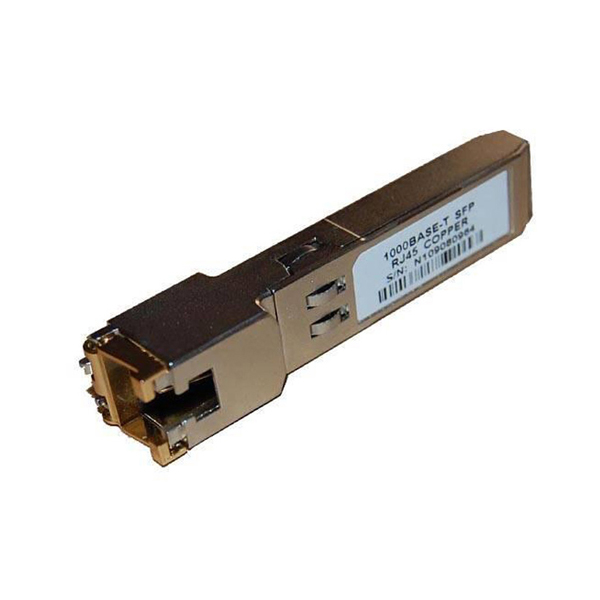

SFP-T 1000BASE-T Copper SFP Transceiver

  • Up to 1.25Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • TX Disable and RX Los/without Los function
  • Fully metallic enclosure for low EMI
  • Low power dissipation (1.05 W typical)
  • Compact RJ-45 connector assembly

Thanks a lot for your inquiry and we will handle it as early as possible.

PH-GLC-T   Overview

SFP-T 1000BASE-T and 10/100/1000BASE-T Copper Small Form Pluggable (SFP)transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supp- orting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The module supports1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address ACh.

PH-GLC-T   Specification

SFP-T 1000BASE-T and 10/100/1000BASE-T Copper SFP Transceiver PH-GLC-T



Features

  • Up to 1.25Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • TX Disable and RX Los/without Los function
  • Fully metallic enclosure for low EMI
  • Low power dissipation (1.05 W typical)
  • Compact RJ-45 connector assembly
  • Access to physical layer IC via 2-wire serial bus
  • 1000 BASE-T operation in host systems with SERDES interface
  • 10/100/1000Mbps compliant in host systems with SGMII interface
  • Operating case temperature range of

0°C to +70°C (Commercial) or -20°C to +85°C (Extend)

Applications

  • 1.25 Gigabit Ethernet over Cat 5 cable

Description

SFP-T 1000BASE-T and 10/100/1000BASE-T Copper Small Form Pluggable (SFP)transceivers is high performance, cost effective module compliant with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE 802. 3-2002 and IEEE 802.3ab, which supp- orting 1000Mbps data- rate up to 100 meters reach over unshielded twisted-pair category 5 cable. The module supports1000 Mbps full duplex data-links with 5-level Pulse Amplitude Modulation (PAM) signals. All four pairs in the cable are used with symbol rate at 250Mbps on each pair. The module provides standard serial ID information compliant with SFP MSA, which can be accessed with address of A0h via the 2wire serial CMOS EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address ACh.

Pin Definitions

Pin Diagram

Figure 1. Pin Definitions

Pin Descriptions

Pin

Signal Name

Description

Plug Seq.

Notes

1

VEET

Transmitter Ground

1



2

TX FAULT

Transmitter Fault Indication

3

Note1

3

TX DISABLE

Transmitter Disable

3

Note2

4

MOD_DEF(2)

SDA Serial Data Signal

3

Note3

5

MOD_DEF(1)

SCL Serial Clock Signal

3

Note3

6

MOD_DEF(0)

TTL Low

3

Note3

7

Rate Select

Not Connected

3



8

LOS

Loss of Signal

3

Note4

9

VEER

Receiver ground

1



10

VEER

Receiver ground

1



11

VEER

Receiver ground

1



12

RX-

Inv. Received Data Out

3

Note 5

13

RX+

Received Data Out

3

Note 5

14

VEER

Receiver ground

1



15

VCCR

Receiver Power Supply

2



16

VCCT

Transmitter Power Supply

2



17

VEET

Transmitter Ground

1



18

TX+

Transmit Data In

3

Note 6

19

TX-

Inv. Transmit Data In

3

Note 6

20

VEET

Transmitter Ground

1



Notes:

Plug Seq.: Pin engagement sequence during hot plugging.

1) TX Fault is not supported and is always connected to ground.

2) TX disable, an input used to reset the transceiver module, This pin is pulled up within the module with a 4.7 KΩ resistor.

Low (0 – 0.8 V): Transceiver on

Between (0.8 V and 2.0 V): Undefined

High (2.0 – 3.465 V): Transceiver in reset state

Open: Transceiver in reset state

3) Mod-Def 0,1,2. These are the module definition pins. They should be pulled up with a 4.7K~10K resistor on the host board. The pull-up voltage shall be VccT or VccR

Mod-Def 0 is grounded by the module to indicate that the module is present

Mod-Def 1 is the clock line of two wire serial interface for serial ID

Mod-Def 2 is the data line of two wire serial interface for serial ID

4) RX_LOS (Loss of Signal): LVTTL compatible with a maximum voltage of Host_Vcc. RX_LOS can enabled or disabled (Refer to Ordering information),RX_LOS is not used and is always tied to ground via 100-ohm resistor.

5) RD-/+: These are the differential receiver outputs. They are AC coupled 100 differential lines which should be terminated with 100 (differential) at the user SERDES.

6) TD-/+: These are the differential transmitter inputs. They are AC-coupled, differential lines with 100 differential termination inside the module.

+3.3V Volt Electrical Power Interface

+3.3V volt Electrical Power Interface

Parameter

Symbol

Min

Typ

Max

Units

Notes/Conditions

Supply Current

Is



320

375

mA

1.2W max power over full range of voltage and temperature.

See caution note below

Input Voltage

Vcc

3.13

3.3

3.47

V

Referenced to GND

Maximum Voltage

Vmax



4

V



Low-speed signals, electronic characteristics

Low-Speed Signals, Electronic Characteristics

Parameter

Symbol

Min

Max

Units

Notes/Conditions

SFP Output LOW

VOL

0

0.5

V

4.7k to 10k pull-up to host_Vcc, measured at host side of connector

SFP Output HIGH

VOH

host_Vcc - 0.5

host_Vcc + 0.3

V

4.7k to 10k pull-up to host_Vcc, measured at host side of connector

SFP Input LOW

VIL

0

0.8

V

4.7k to 10k pull-up to Vcc, measured at SFP side of connector

SFP Input HIGH

VIH

2

Vcc + 0.3

V

4.7k to 10k pull-up to Vcc, measured at SFP side of connector

High-speed electrical interface, transmission line-SFP

High-Speed Electrical Interface Transmission Line-SFP

Parameter

Symbol

Min

Typ

Max

Units

Notes/Conditions

Line Frequency

fL



125



MHz

5-level encoding, per IEEE 802.3

Tx Output Impedance

Zout,TX



100



Ohm

Differential, for all Frequencies between 1MHz and 125MHz

Rx Input Impedance

Zin,RX



100



Ohm

Differential, for all Frequencies between 1MHz and 125MHz

High-speed electrical interface, host-SFP

High-Speed Electrical Interface, Host-SFP

Parameter

Symbol

Min

Typ

Max

Units

Notes/Conditions

Single ended data input swing

Vinsing

250



1200

mV

Single ended

Single ended data output swing

Voutsing

350



800

mV

Single ended

Rise/Fall Time

Tr,Tf



175



psec

20%-80%

Tx Input Impedance

Zin



50



Ohm

Single ended

Rx Output Impedance

Zout



50



Ohm

Single ended

General specifications

General

Parameter

Symbol

Min

Typ

Max

Units

Notes/Conditions

Data Rate

BR

10



1000

Mb/sec

IEEE 802.3 compatible.

See Notes 2 through 4 below

Cable Length

L



100

m

Category 5 UTP. BER <10-12

Notes:

1. Clock tolerance is +/- 50 ppm

2. By default, the SFP-T 1000BASE-T and 10/100/1000BASE-T is a full duplex device in preferred master mode

3. Automatic crossover detection is enabled. External crossover cable is not required

Environmental specifications

Parameter

Symbol

Min

Typical

Max

Unit

Operating Case Temperature

Commercial

Tc

0



+70

°C

Extend

-20



+85

°C

Storage Temperature



-40



+85

°C

Mechanical Specifications

The host-side of the SFP-T 1000BASE-T and 10/100/1000BASE-T conforms to the mechanical specifications outlined in the SFP MSA1. The front portion of the SFP (part extending beyond the face plate of the host) is larger to accommodate the RJ-45 connector.

Figure 2. Mechanical dimensions

Regulatory Compliance

SFP-Coper transceiver is designed to be Class I Laser safety compliant and is certified per the following standards:

Feature

Agency

Standard

Certificate / Comments

Environmental protection

SGS

RoHS Directive 2002/95/EC

GZ090319751A/CHEM
