OM3 LC-LC duplex fiber patch cord

  • Standard: IEC, Telcordia GR-326-CORE
  • high return loss and low insertion loss ,
  • PC/UPC/APC polishing
  • Fiber cable diameter: 1.6mm, 2.0mm, 3.0mm fiber is available
  • Fiber jacket PVC or LSZH cable is available
  • Fiber optic patch cord with excellent changeability and repeatability

Thanks a lot for your inquiry and we will handle it as early as possible.

OM3 LC-LC duplex   Overview

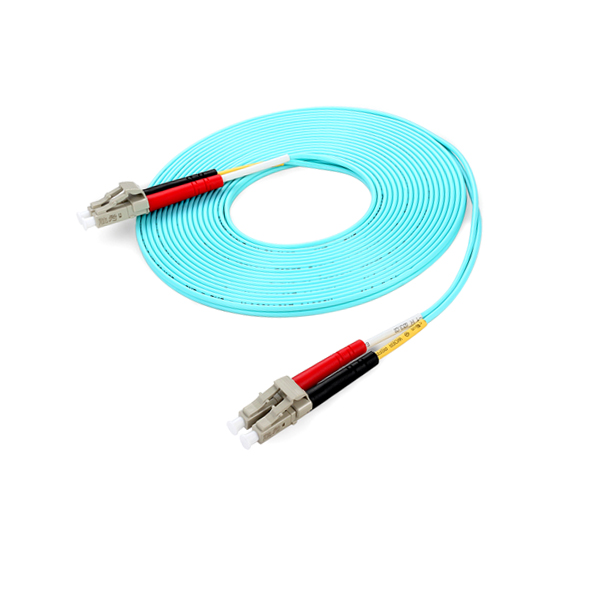

This product is an optical multi-mode OM3 patch cord with LC/UPC connector at Side A,and side B is LC/UPC. Cable construction: duplex 3.0mm LSZH (PVC optional) outer jacket.

OM3 LC-LC duplex   Specification

OM3 LC-LC duplex   Specification

Application

Local Area Networks, including FTTH and FTTD, CATV System

Telecommunication Networks

Data processing networks



Specification:

Standard: IEC, Telcordia GR-326-CORE

Our optical fiber patch cord is high return loss and low insertion loss ,Insertion loss is less than 0.3dB,Return loss UPC is more than 55dB ,APC is more than 60dB

PC/UPC/APC polishing

Fiber cable diameter: 1.6mm, 2.0mm, 3.0mm fiber is available

Fiber jacket PVC or LSZH cable is available

Fiber optic patch cord with excellent changeability and repeatability

Operating temperature range: -40°C—80°C

Storage temperature range: -40°C—80°C

Tensile strength: 10N

Parameter:

Spec.

fiber optic patch cord

Insertion loss

Less than 0.3dB

Return loss

MM more than 35dB

SM more than 55dB

APC more than 60dB

Repeatability

Less than 0.2dB

Changeability

Less than 0.1dB

Operting termperature

 -40°C~80°C

Storage temperature

 -40°C~80°C

Tensile strength

100N

Min.bending radius

35mm

Length

Customized
