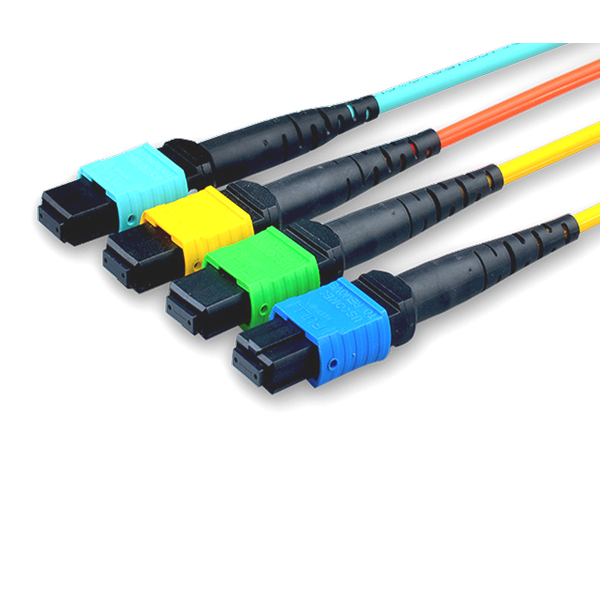

High Speed and High Density - MPO to MPO Patch Cable, (MPO FEMALE Connector without PIN). Low insertion loss and back reflection loss process
TYPE B & IEEE802BM - MMF(50/125um), OM3 10G standard, LSZH sheet, 8-core/ 12-core fibers cable, constructed with TYPE B (Chanel 1 to Chanel 12)

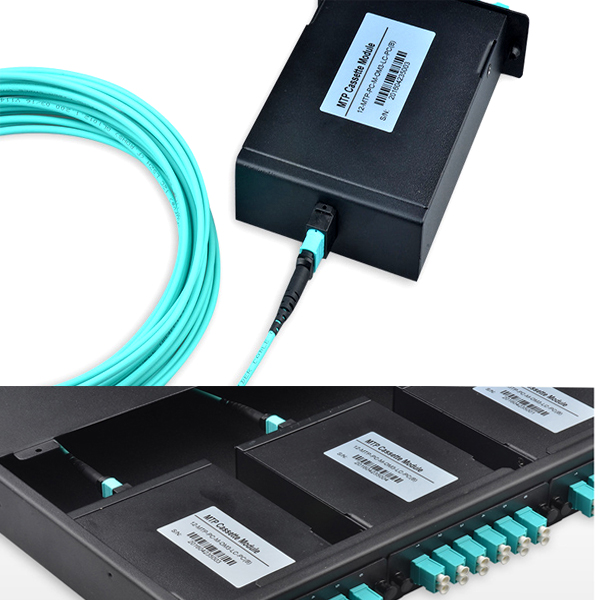

High-performance for Your Datacenter - IL at 850nm 25 Db; Common configuration for connecting MPO / MTP cassettes and QSFP+ transceivers
No Doubt About Quality - High-performance polishing machine, and complemented by precision plates holders designed for MT ferrules, 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of hte polished MT ferrule complies and exceeds industry standards.
Better Get It HereThe flexibility of the tester provides the the complete spectrum of optical testing required for complex and high fiber count cable assemblie.
| Connector A | MPO Female (pinless) | Connector B | MPO Female (pinless) |
| Fiber Mode | 8/12fibers OM3 50/125 μm | Wavelength | 850/1300 nm |
| 40/100G Ethernet Distance | 100 m at 850 nm | 10G Ethernet Distance | 300 m at 850 nm |
| Multi Mode Class | OM3 | RoHS Compliancy Status | Compliant |
| Polish Type | UPC to UPC | Minimum Bend Radius | 7.5 mm |
| Insertion Loss | 0.35 dB Max. (0.15 dB Typ.) | Return Loss | ≥ 20 dB |
| Attenuation at 850 nm | ≤ 2.3 dB/km | Attenuation at 1300 nm | ≤ 0.6 dB/km |
| Jacket OD | 3.0 mm | Cable Jacket | LSZH |
| Installation Tensile Load | 100 N | Long-Term Tensile Load | 50 N |
| Storage Temperature | -40°C to 85°C | Operating Temperature | -10°C to 70°C |
