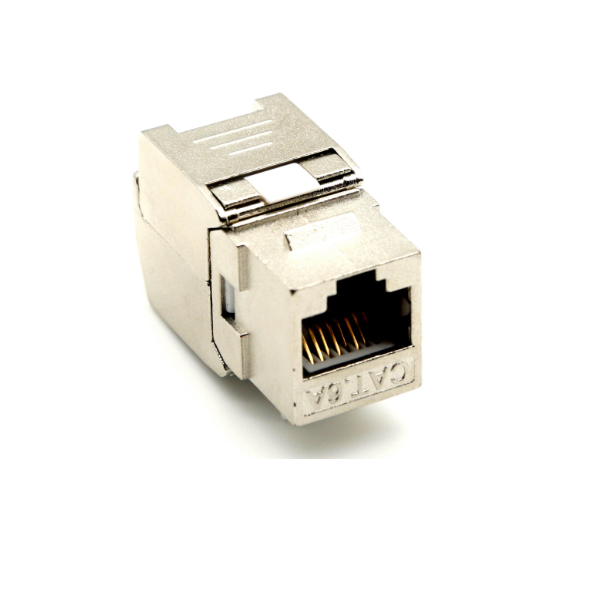

CAT6A STP Keystone Jack

  • Cat.6A shielded keystone Jack
  • Metal material: Zinc alloy
  • Pin material: phosphor bronze
  • Pass fluke test

Thanks a lot for your inquiry and we will handle it as early as possible.

C26528   Overview

CAT.6A STP keystone Jack, 90 degree,with IDC cap,110 IDC, pass fluke test.

C26528   Specification

PHYSICAL CHARACTERISTICS

Durability : 200 termination cycles

Contact compatibility : accommodates 22 to 24 Awg solid.

Operating temperature range : -10°C to 60°C.

Storage temperature range : -40°C to 68°C

Humidity : 10%-90% RH.





ELECTRICAL CHARACTERISTICS

nsulation resistance : 500 MΩ

Dielectric withstanding voltage : 1000 V AC.

DC current rating : 1.5 Amps.

DC resistance : 0.10.

Contact resistance : 20MΩ
