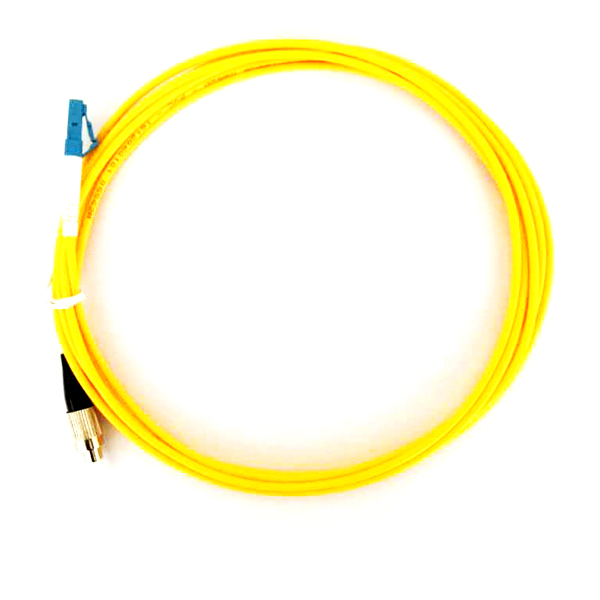

1. Features of LC-FC Optical Fiber Patch Cord
-Low insertion loss
-High return loss
-Excellent Repeatability,exchangebility,wearability and stability
-Environmentally Stable
2. Applications of LC-FC Optical Fiber Patch Cord
-Optical fiber communications system
-Optical fiber access networks
-Optical fiber CATV
-Optical fiber test equipments
-Optical fiber data communication
3.Technical Specs for LC-FC Optical Fiber Patch Cord
|
Item |
PC |
UPC |
APC |
|
Testing Wavelength(nm) |
1310nm&1550nm |
||
|
Insertion Loss Max(dB) |
0.3 |
||
|
Return Loss(dB) |
45 |
50 |
55 |
4.Specs for LC-FC Optical Fiber Patch Cord
|
Item |
UPC |
APC |
||
|
Φ0.125mm |
Φ0.25mm |
Φ0.125mm |
Φ0.25mm |
|
|
Redius of Curve(mm) |
7~25 |
10~25 |
5~12 |
|
|
Apex Offset(um) |
≤50 |
|||
|
Fiber Height(nm) |
+50/-100 |
|||
|
Polishing Angle(°C) |
8±0.3 |
|||
