ZR-4G1S

10/100/1000Mbps 4 ports media converter

In conformity to IEEE802.3 10base-T, IEEE802.3u 100 base-TX/FX, IEEE802.3ab 1000 base-T, IEEE802.3z,1000base-SX/LX, IEEE802.1a, IEEE802.1PQ0S, IEEE802.1d Spanning Tree.
Hot Plug-gable & Wall-Mountable.
Stable performance more than 50 thousand hours with fault-free.
Supports 10/100Mbps and 10/100/1000M full/half duplex, easy upgrades.
Auto MDI/MDI-X；Auto Negotiation.
Support flow control.
Stable performance more than 50 thousands hours with fault-free.
In conformity with safety code of FCC, CE and RoHS.

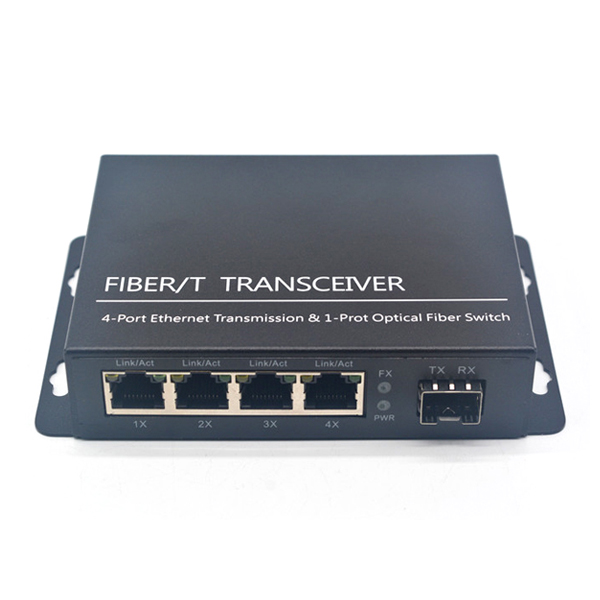

ZR-4G1S Overview

The 4 ports media converter which give you economic solutions for media conversion between fiber and copper Ethernet. It provides SFP fiber slot for fiber optic cables and RJ45 for twisted pair UTP cable connection. The maximum extension is up to 120km over fiber（depend on optical module）.

ZR-4G1S Specification

Optical Interface	Connector	SFP slot for fiber connection
	Data Rate	1000Mbps
	Duplex Mode	Full duplex
	Fiber	SM or MM depend on optical module
	Distance	10/100/1000Mbps: Max 120km depend on optical module
	Wavelength	Depend on optical module
UTP Interface	Connector	RJ45
	Data Rate	10/100/1000Mbps
	Duplex Mode	Half/full duplex
	Cable	Cat5,Cat6
Power Input	Adapter Type	DC5V
Power Consumption		＜3W
Port Numbers		4* 10/100/1000 RJ45 + 1* 1.25G SFP slot
Weight	Adapter Type	0.4kg
Dimensions	Adapter Type	134mm82mm27mm
Temperature		0~50℃ Operating; -40~70℃ Storage
Humidity		5~95%(no condensing)
MTBF		≥10.0000h
Certification		CE,FCC,RoHS

Application

* Extend your Ethernet connection up to 0~120km away using fiber optics

* Creates an economical Ethernet-fiber/copper-fiber link for connecting remote sub-networks to larger fiber optic networks/backbones

* Converts Ethernet to fiber, fiber to copper/Ethernet, ensuring optimum network scalability for connecting two or more Ethernet network nodes (e.g. connecting two buildings on the same campus)

* Designed to provide high-speed bandwidth for demanding large scale work groups that require expansion of Gigabit Ethernet Network
