10/100M 4 ports Media Converter

  • Complies with IEEE 802.3 10 Base-T standard.
  • Complies with IEEE 802.3u 10/100 Base-TX/FX standard
  • Complies with IEEE 802.3X standard.
  • 10/100Mbps port with full/half duplex auto-negotiation
  • Back pressure flow control for full duplex
  • Converter mode with auto-change-forward(Switch)function
  • Back pressure flow control for full/half duplex IEEE802.3X.

Thanks a lot for your inquiry and we will handle it as early as possible.

ZR-1F4E-20   Overview

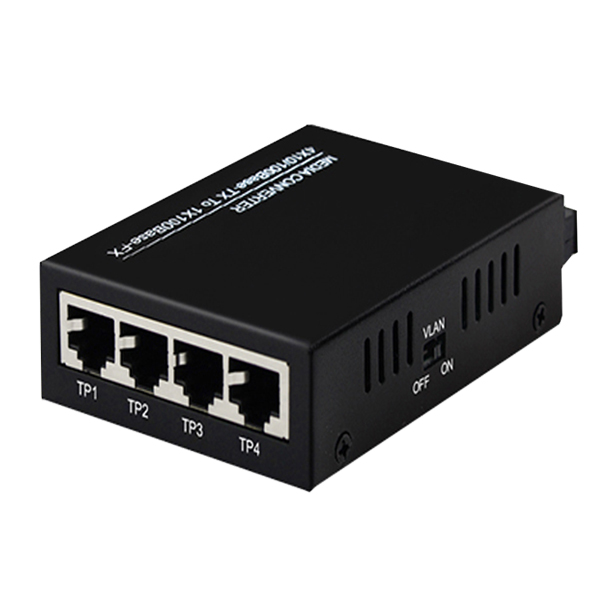

This is a 10/100Mbps 4 ports fiber media converter with duplex SC fiber port,external power adapter,transmission from 2km max to 120km.

ZR-1F4E-20   Specification

Technical Specifications



Compliant Standards

IEEE802.3/u/z/ab,10Base-T,100Base-TX 1000Base-TX



Interface Standards:

Electronical interface:RJ-45,10/100Mbps(Self-adaptive)

 Optical interface: ST/SC/FC,100Mbps(Duplex)



Optical Cable:

UTP: 5 cat(Max Distance 100m)

 Fiber(multimode): 50/125,62.5/125μm)

 Fiber(Single Mode): 8/125,8.7/125,9/125,10/125



Flow Control:

 Full-duplexIEEE802.3x Flow Control

 Half-duplex backpressure flow control





Environmental requirements

Environment temperature:-25℃~+50℃

Storage temperature: -35 ℃~+75 ℃

Rated supply voltage:  AC85-260V/50Hz

MTBF: 100000 Hours

 Power loss: ﹤5 w(Input:DC5V 1000-3000mA

Dimensions

11CM(L)*7CM(W)*2.5CM(H)

Features

1. Complies with IEEE 802.3 10 Base-T standard.

2. Complies with IEEE 802.3u 10/100 Base-TX/FX standard

3. Complies with IEEE 802.3X standard.

4. 10/100Mbps port with full/half duplex auto-negotiation

5. Back pressure flow control for full duplex

6. Converter mode with auto-change-forward(Switch)function

7. Back pressure flow control for full/half duplex IEEE802.3X.

8. Automatic identification of MDI/MDI-X cross-line.

9. High-performance 155Mbps bandwidth.

10. Complies with FCC, 15 CLASS A ,RoHs and CE MARK
