10GBase-T Copper SFP+ Transceiver
Product Features
Applications
Description
SFP+-T Copper Small Form Pluggable (SFP) transceivers are high performance, cost effective module compliant with the 10G Ethernet and 10GBASE-T standards as specified in IEEE 802.3az, which supporting 10Gbps data- rate up to 30 meters reach over unshielded twisted-pair category 6a/7 cables. The module provides standard serial ID information compliant with SFP+ MSA, which can be accessed with address of A0h via the 2wire serial EEPROM protocol. The physical IC can also be accessed via 2wire serial bus at address A0h.

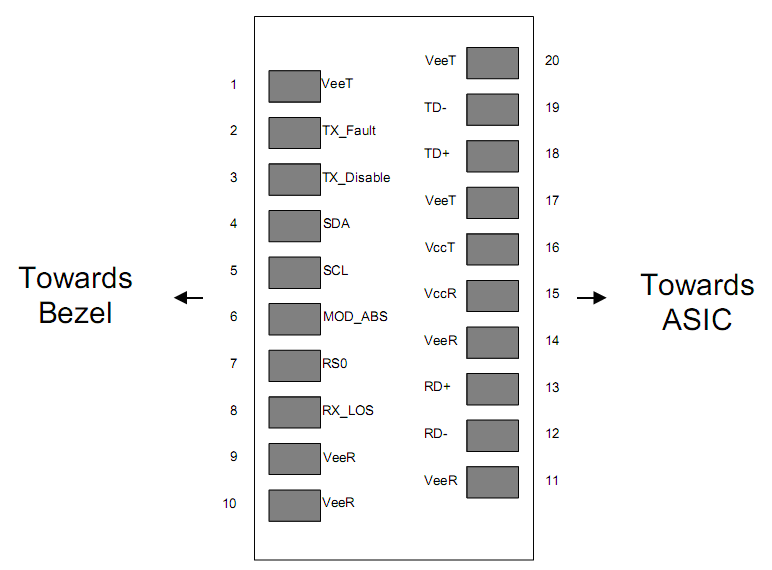

Pin Descriptions
|
Pin |
Signal Name |
Description |
Plug Seq. |
Notes |
|
1 |
VEET |
Transmitter Ground |
1 |
|
|
2 |
TX FAULT |
Transmitter Fault Indication |
3 |
Not supported |
|
3 |
TX DISABLE |
Transmitter Disable |
3 |
|
|
4 |
SDA |
SDA Serial Data Signal |
3 |
|
|
5 |
SCL |
SCL Serial Clock Signal |
3 |
|
|
6 |
MOD_ABS |
Module Absent. Grounded within the module |
3 |
|
|
7 |
RS0 |
Not Connected |
3 |
|
|
8 |
LOS |
Loss of Signal |
3 |
|
|
9 |
VEER |
Receiver ground |
1 |
|
|
10 |
VEER |
Receiver ground |
1 |
|
|
11 |
VEER |
Receiver ground |
1 |
|
|
12 |
RD- |
Inv. Received Data Out |
3 |
|
|
13 |
RD+ |
Received Data Out |
3 |
|
|
14 |
VEER |
Receiver ground |
1 |
|
|
15 |
VCCR |
Receiver Power Supply |
2 |
|
|
16 |
VCCT |
Transmitter Power Supply |
2 |
|
|
17 |
VEET |
Transmitter Ground |
1 |
|
|
18 |
TD+ |
Transmit Data In |
3 |
|
|
19 |
TD- |
Inv. Transmit Data In |
3 |
|
|
20 |
VEET |
Transmitter Ground |
1 |
+3.3V Volt Electrical Power Interface
The SFP+-T has an input voltage range of +3.3V +/- 5%.
Table 1. +3.3V Volt electrical power interface
|
+3.3V volt Electrical Power Interface |
||||||
|
Parameter |
Symbol |
Min |
Typ |
Max |
Units |
Notes/Conditions |
|
Supply Current |
Is |
700 |
750 |
mA |
2.5W max power over full range of voltage and temperature. See caution note below |
|
|
Input Voltage |
Vcc |
3.13 |
3.3 |
3.47 |
V |
Referenced to GND |
|
Maximum Voltage |
Vmax |
4 |
V |
|||
|
Surge Current |
Isurge |
30 |
mA |
Hot plug above steady state current. See caution note below |
||
|
Insulation Voltage |
VIn |
500 |
V |
|||
General Specifications
Table 2. General specifications
|
General |
||||||
|
Parameter |
Symbol |
Min |
Typ |
Max |
Units |
Notes/Conditions |
|
Data Rate |
BR |
10.3 |
Gb/sec |
IEEE 802.3 compatible. |
||
|
Cable Length |
L |
30 |
m |
Category 6a/7 UTP. BER <10-12 |
||
Environmental Specifications
Table 3. Environmental specifications
|
Environmental Specifications |
||||||
|
Parameter |
Symbol |
Min |
Typ |
Max |
Units |
Notes/Conditions |
|
Operating Temperature |
Top |
0 |
70 |
°C |
Case temperature |
|
|
Storage Temperature |
Tsto |
-40 |
85 |
°C |
Ambient temperature |
|

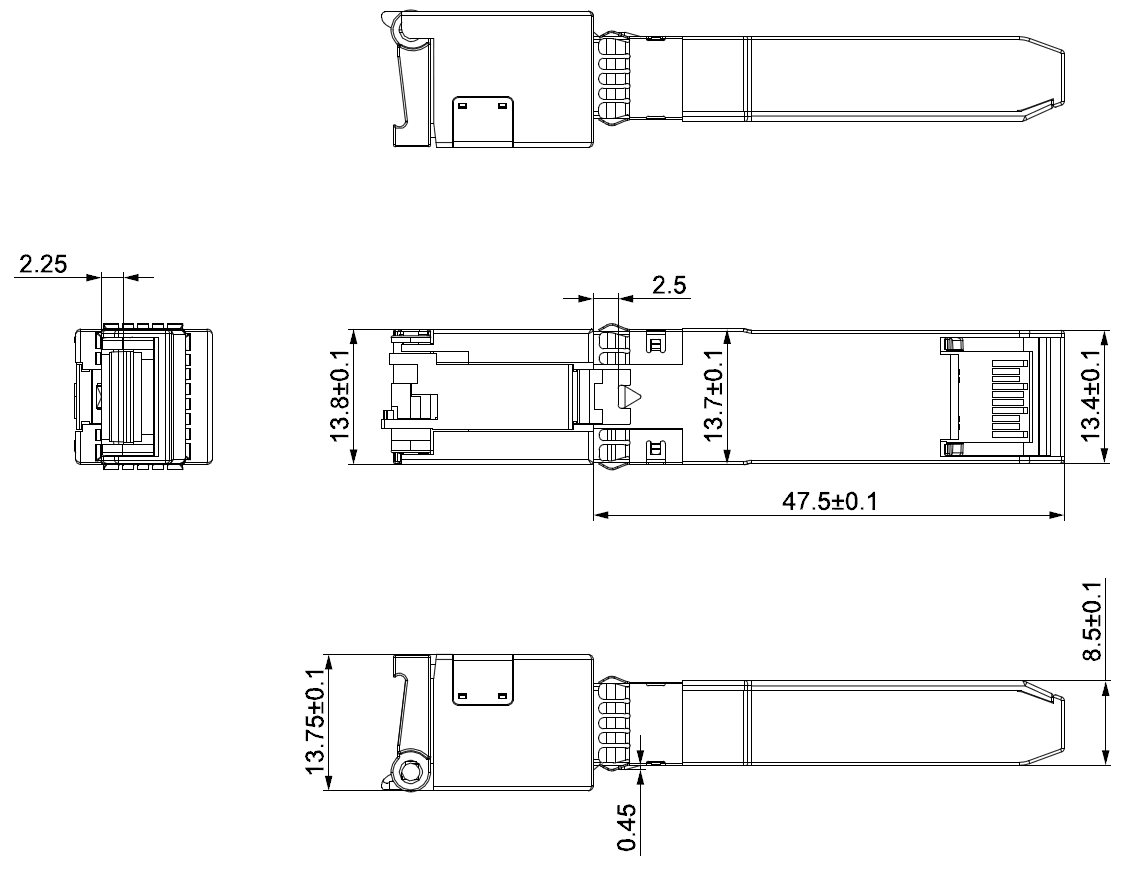

Mechanical Specifications
