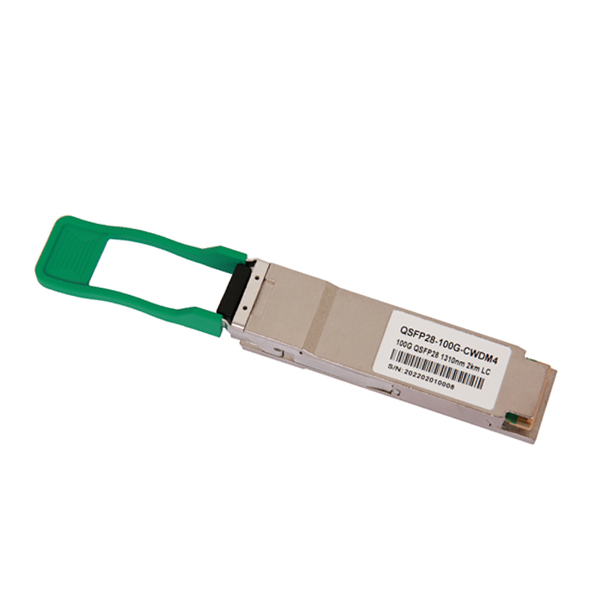

100Gbps QSFP28 CWDM4 2km Optical Transceiver

  • QSFP28 MSA compliant
  • 4 CWDM lanes MUX/DEMUX design
  • Supports 103.1Gb/s aggregate bit rate
  • 100G CWDM4 MSA Technical Spec Rev1.1

Thanks a lot for your inquiry and we will handle it as early as possible.

PHQ28CWDM4   Overview

This product is a transceiver module designed for 2km optical communication applications. The design is compliant to 100GBASE CWDM4 MSA standard. The module converts 4 inputs channels (ch) of 25Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.

PHQ28CWDM4   Specification

100Gb/s QSFP28 CWDM4 2km Optical Transceiver Module

PHQ28CWDM4

Features

  • QSFP28 MSA compliant
  • 4 CWDM lanes MUX/DEMUX design
  • Supports 103.1Gb/s aggregate bit rate
  • 100G CWDM4 MSA Technical Spec Rev1.1
  • Up to 2km transmission on single mode fiber (SMF) with FEC
  • Operating case temperature: 0 to 70oC
  • 4x25G electrical interface (OIF CEI-28G-VSR)
  • Maximum power consumption 3.5W
  • LC duplex connector
  • RoHS compliant

Applications

  • Data Center Interconnect
  • 100G Ethernet
  • Infiniband QDR and DDR interconnects
  • Enterprise networking

1.General Description

This product is a transceiver module designed for 2km optical communication applications. The design is compliant to 100GBASE CWDM4 MSA standard. The module converts 4 inputs channels (ch) of 25Gb/s electrical data to 4 CWDM optical signals, and multiplexes them into a single channel for 100Gb/s optical transmission. Reversely, on the receiver side, the module optically de-multiplexes a 100Gb/s input into 4 CWDM channels signals, and converts them to 4 channel output electrical data.

The central wavelengths of the 4 CWDM channels are 1271, 1291, 1311 and 1331 nm as members of the CWDM wavelength grid defined in ITU-T G.694.2. It contains a duplex LC connector for the optical interface and a 38-pin connector for the electrical interface. To minimize the optical dispersion in the long-haul system, single-mode fiber (SMF) has to be applied in this module. Host FEC is required to support up to 2km fiber transmission.

The product is designed with form factor, optical/electrical connection and digital diagnostic interface according to the QSFP28 Multi-Source Agreement (MSA). It has been designed to meet the harshest external operating conditions including temperature, humidity and EMI interference.

2.Functional Description

This product converts the 4-channel 100Gb/s electrical input data into CWDM optical signals (light), by a driven 4-wavelength Distributed Feedback Laser (DFB) array. The light is combined by the MUX parts as a 100Gb/s data, propagating out of the transmitter module from the SMF. The receiver module accepts the 100Gb/s CWDM optical signals input, and de-multiplexes it into 4 individual 25Gb/s channels with different wavelength. Each wavelength light is collected by a discrete photo diode, and then outputted as electric data after amplified by a TIA and a post amplifier. Figure 1 shows the functional block diagram of this product.

A single +3.3V power supply is required to power up this product. Both power supply pins VccTx and VccRx are internally connected and should be applied concurrently. As per MSA specifications the module offers 7 low speed hardware control pins (including the 2-wire serial interface): ModSelL, SCL, SDA, ResetL, LPMode, ModPrsL and IntL.

Module Select (ModSelL) is an input pin. When held low by the host, this product responds to 2-wire serial communication commands. The ModSelL allows the use of this product on a single 2-wire interface bus – individual ModSelL lines must be used.

Serial Clock (SCL) and Serial Data (SDA) are required for the 2-wire serial bus communication interface and enable the host to access the QSFP+ memory map.

The ResetL pin enables a complete reset, returning the settings to their default state, when a low level on the ResetL pin is held for longer than the minimum pulse length. During the execution of a reset the host shall disregard all status bits until it indicates a completion of the reset interrupt. The product indicates this by posting an IntL (Interrupt) signal with the Data_Not_Ready bit negated in the memory map. Note that on power up (including hot insertion) the module should post this completion of reset interrupt without requiring a reset.

Low Power Mode (LPMode) pin is used to set the maximum power consumption for the product in order to protect hosts that are not capable of cooling higher power modules, should such modules be accidentally inserted.

Module Present (ModPrsL) is a signal local to the host board which, in the absence of a product, is normally pulled up to the host Vcc. When the product is inserted into the connector, it completes the path to ground through a resistor on the host board and asserts the signal. ModPrsL then indicates its present by setting ModPrsL to a “Low” state.

Interrupt (IntL) is an output pin. “Low” indicates a possible operational fault or a status critical to the host system. The host identifies the source of the interrupt using the 2-wire serial interface. The IntL pin is an open collector output and must be pulled to the Host Vcc voltage on the Host board.

3.Transceiver Block Diagram

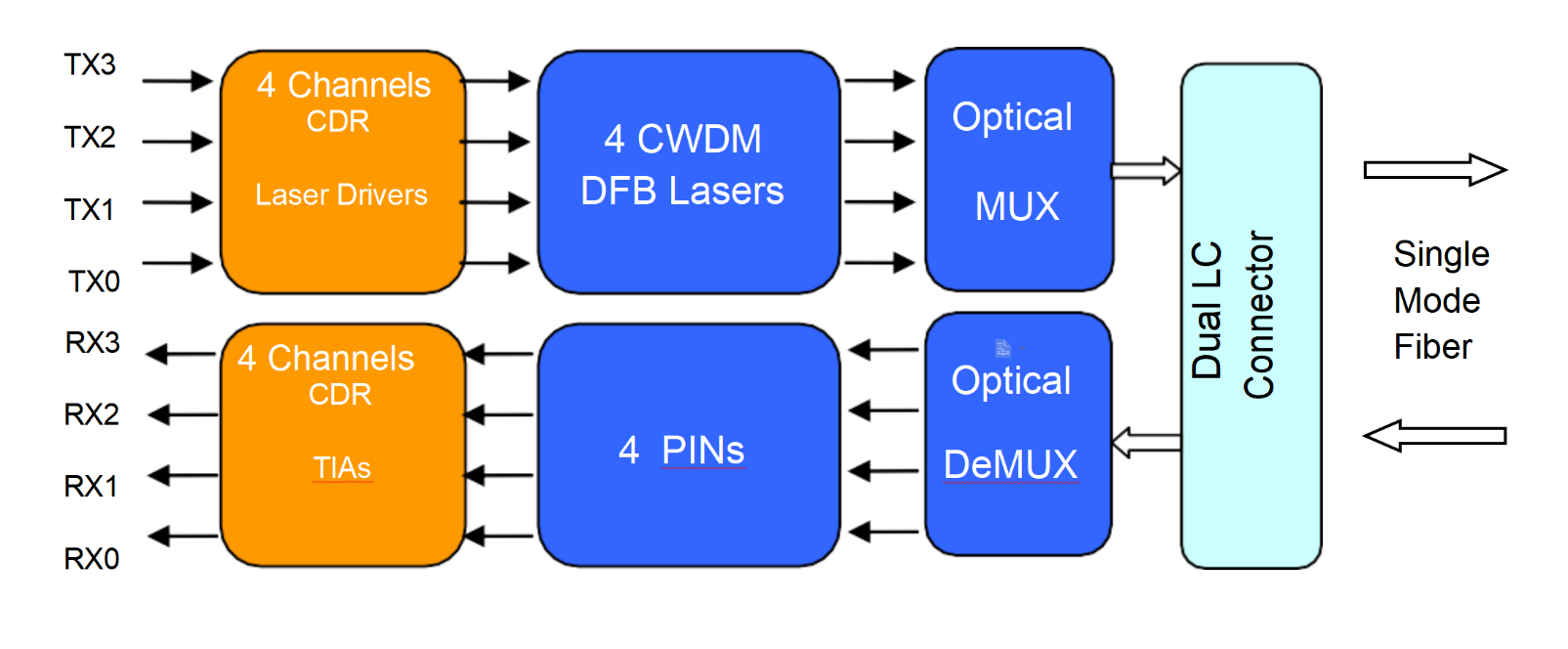

Figure 1. Transceiver Block Diagram

4.Pin Assignment and Description

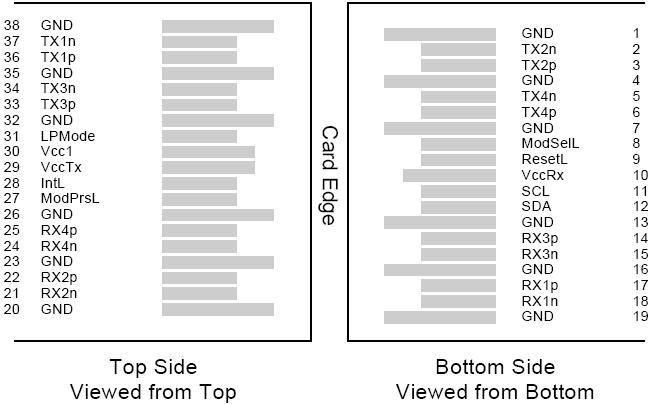

Figure 2. MSA Compliant Connector

Pin Definition

PIN

Logic

Symbol

Name/Description

Notes

1



GND

Ground

1

2

CML-I

Tx2n

Transmitter Inverted Data Input



3

CML-I

Tx2p

Transmitter Non-Inverted Data output



4



GND

Ground

1

5

CML-I

Tx4n

Transmitter Inverted Data Input



6

CML-I

Tx4p

Transmitter Non-Inverted Data output



7



GND

Ground

1

8

LVTLL-I

ModSelL

Module Select



9

LVTLL-I

ResetL

Module Reset



10



VccRx

+3.3V Power Supply Receiver

2

11

LVCMOS-I/O

SCL

2-Wire Serial Interface Clock



12

LVCMOS-I/O

SDA

2-Wire Serial Interface Data



13



GND

Ground



14

CML-O

Rx3p

Receiver Non-Inverted Data Output



15

CML-O

Rx3n

Receiver Inverted Data Output



16



GND

Ground

1

17

CML-O

Rx1p

Receiver Non-Inverted Data Output



18

CML-O

Rx1n

Receiver Inverted Data Output



19



GND

Ground

1

20



GND

Ground

1

21

CML-O

Rx2n

Receiver Inverted Data Output



22

CML-O

Rx2p

Receiver Non-Inverted Data Output



23



GND

Ground

1

24

CML-O

Rx4n

Receiver Inverted Data Output

1

25

CML-O

Rx4p

Receiver Non-Inverted Data Output



26



GND

Ground

1

27

LVTTL-O

ModPrsL

Module Present



28

LVTTL-O

IntL

Interrupt



29



VccTx

+3.3 V Power Supply transmitter

2

30



Vcc1

+3.3 V Power Supply

2

31

LVTTL-I

LPMode

Low Power Mode



32



GND

Ground

1

33

CML-I

Tx3p

Transmitter Non-Inverted Data Input



34

CML-I

Tx3n

Transmitter Inverted Data Output



35



GND

Ground

1

36

CML-I

Tx1p

Transmitter Non-Inverted Data Input



37

CML-I

Tx1n

Transmitter Inverted Data Output



38



GND

Ground

1

Notes:

1. GND is the symbol for signal and supply (power) common for QSFP28 modules. All are

common within the QSFP28 module and all module voltages are referenced to this potential

unless otherwise noted. Connect these directly to the host board signal common ground plane.

2. VccRx, Vcc1 and VccTx are the receiver and transmitter power suppliers and shall be applied

concurrently. Recommended host board power supply filtering is shown in Figure 4 below. Vcc

Rx, Vcc1 and Vcc Tx may be internally connected within the QSFP28 transceiver module in any

combination. The connector pins are each rated for a maximum current of 1000mA.

5.Recommended Power Supply Filter

Fiber 12

Fiber 1

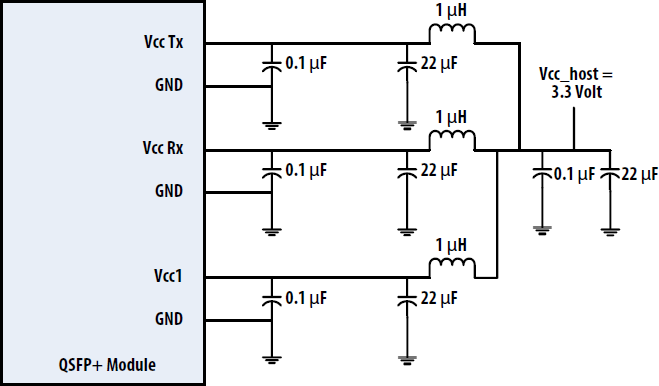

Figure 3. Recommended Power Supply Filter

6.Absolute Maximum Ratings

It has to be noted that the operation in excess of any individual absolute maximum ratings might cause permanent damage to this module.

Parameter

Symbol

Min

Max

Units

Note

Storage Temperature

TS

-40

85

degC



Operating Case Temperature

TOP

0

70

degC



Power Supply Voltage

VCC

-0.5

3.6

V



Relative Humidity (non-condensation)

RH

0

85

%



Damage Threshold, each Lane

THd

3.5



dBm



7.Recommended Operating Conditions and Power Supply Requirements

Parameter

Symbol

Min

Typical

Max

Units

Notes

Operating Case Temperature

TOP

0



70

degC



Power Supply Voltage

VCC

3.135

3.3

3.465

V



Data Rate, each Lane



25.78125



Gb/s



Data Rate Accuracy



-100



100

ppm



Pre-FEC Bit Error Ratio



5x10-5



Post-FEC Bit Error Ratio



1x10-12



1

Control Input Voltage High



2



Vcc

V



Notes:

1.FEC provided by host system.

2.FEC required on host system to support maximum distance.

8.Electrical Characteristics

The following electrical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter

Test Point

Min

Typical

Max

Units

Notes

Power Consumption



3.5

W



Supply Current

Icc



1.06

A



Transmitter (each Lane)

Overload Differential Voltage pk-pk

TP1a

900



mV



Common Mode Voltage (Vcm)

TP1

-350



2850

mV

1

Differential Termination Resistance Mismatch

TP1



10

%

At 1MHz

Differential Return Loss (SDD11)

TP1



See CEI- 28G-VSR Equation 13-19

dB



Common Mode to Differential conversion and Differential to Common Mode conversion (SDC11, SCD11)



See CEI- 28G-VSR Equation 13-20

dB



Stressed Input Test

TP1a

See CEI- 28G-VSR Section 13.3.11.2.1



Receiver (each Lane)

Differential Voltage, pk-pk

TP4



900

mV



Common Mode Voltage (Vcm)

TP4

-350



2850

mV

1

Common Mode Noise, RMS

TP4



17.5

mV



Differential Termination Resistance Mismatch

TP4



10

%

At 1MHz

Differential Return Loss (SDD22)

TP4



See CEI- 28G-VSR Equation 13-19

dB



Common Mode to Differential conversion and Differential to Common Mode conversion (SDC22, SCD22)

TP4



See CEI- 28G-VSR Equation 13-21

dB



Common Mode Return Loss (SCC22)

TP4



-2

dB

2

Transition Time, 20 to 80%

TP4

9.5



ps



Vertical Eye Closure (VEC)

TP4



5.5

dB



Eye Width at 10-15 probability (EW15)

TP4

0.57



UI



Eye Height at 10-15 probability (EH15)

TP4

228



mV



Notes:

1.Vcm is generated by the host. Specification includes effects of ground offset voltage.

2.From 250MHz to 30GHz.

9.Optical Characteristics

Parameter

Symbol

Min

Typical

Max

Units

Notes

Wavelength Assignment

L0

1264.5

1271

1277.5

nm



L1

1284.5

1291

1297.5

nm



L2

1304.5

1311

1317.5

nm



L3

1324.5

1331

1337.5

nm



Transmitter

Side Mode Suppression Ratio

SMSR

30



dB



Total Average Launch Power

PT



8.5

dBm



Average Launch Power, each Lane

PAVG

-6.5



2.5

dBm



Optical Modulation Amplitude (OMA), each Lane

POMA

-4



2.5

dBm

1

Launch Power in OMA minus



-5



dBm



Transmitter and Dispersion Penalty (TDP), each Lane



TDP, each Lane

TDP



3

dB



Extinction Ratio

ER

3.5



dB



Optical Return Loss Tolerance

TOL



20

dB



Transmitter Reflectance

RT



-12

dB



Average Launch Power OFF Transmitter, each Lane

Poff



-30

dBm



Transmitter Eye Mask Definition {X1, X2, X3, Y1, Y2, Y3}



{0.31, 0.4, 0.45, 0.34, 0.38, 0.4}



2

Receiver

Damage Threshold, each Lane

THd

3.5



dBm

3

Average Receive Power, each Lane



-11.5



2.5

dBm



Receive Power (OMA), each Lane



2.5

dBm



Receiver Sensitivity (OMA), each Lane

SEN



-10

dBm

for BER =5x10-5

Stressed Receiver Sensitivity (OMA), each Lane



-7.3

dBm

4

Receiver Reflectance

RR



-26

dB



LOS Assert

LOSA

-30



dBm



LOS Deassert

LOSD



-15

dBm



LOS Hysteresis

LOSH

0.5



dB



Receiver Electrical 3 dB upper Cutoff Frequency, each Lane



31

GHz



Conditions of Stress Receiver Sensitivity Test (Note 5)

Vertical Eye Closure Penalty, each Lane



1.9



dB



Stressed Eye J2 Jitter, each Lane



0.33



UI



Stressed Eye J4 Jitter, each Lane



0.48



UI



SRS eye mask definition { X1, X2, X3, Y1, Y2, Y3}



{0.39, 0.5, 0.5, 0.39, 0.39, 0.4}



Notes:

1.Even if the TDP < 1.0 dB, the OMA min must exceed the minimum value specified here.

2.Hit ratio 5x10-5.

3.The receiver shall be able to tolerate, without damage, continuous exposure to a modulated optical input signal having this power level on one lane. The receiver does not have to operate correctly at this input power.

4.Measured with conformance test signal for BER = 5x10-5.

5.Vertical eye closure penalty, stressed eye J2 jitter, stressed eye J4 jitter, and SRS eye mask definition are test conditions for measuring stressed receiver sensitivity. They are not characteristics of the receiver.

10.Digital Diagnostic Functions

The following digital diagnostic characteristics are defined over the normal operating conditions unless otherwise specified.

Parameter

Symbol

Min

Max

Units

Notes

Temperature monitor absolute error

DMI_Temp

-3

+3

degC

Over operating temperature range

Supply voltage monitor absolute error

DMI _VCC

-0.1

0.1

V

Over full operating range

Channel RX power monitor absolute error

DMI_RX_Ch

-2

2

dB

1

Channel Bias current monitor

DMI_Ibias_Ch

-10%

10%

mA



Channel TX power monitor absolute error

DMI_TX_Ch

-2

2

dB

1

Notes:

  1. Due to measurement accuracy of different single mode fibers, there could be an additional +/-1 dB fluctuation, or a +/- 3 dB total accuracy.

11.Mechanical Dimensions

C:\Users\Administrator\Desktop\图片2.png图片2

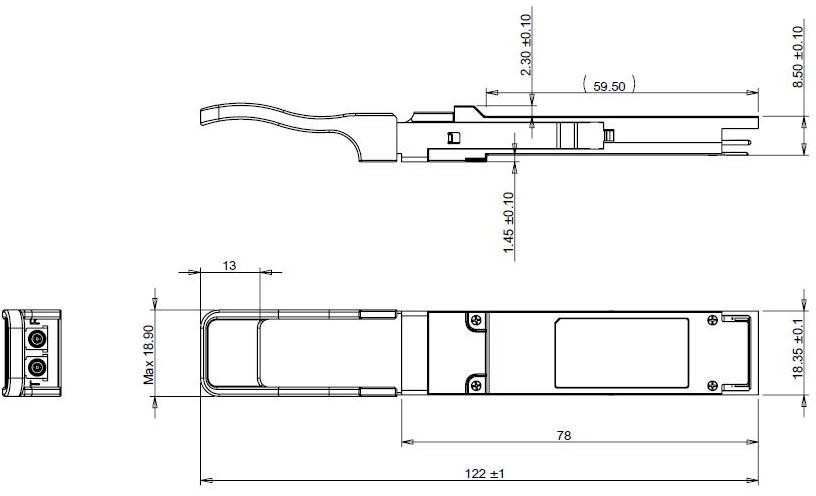

Figure 4. Mechanical Outline

13.ESD

This transceiver is specified as ESD threshold 1kV for high speed data pins and 2kV for all others electrical input pins, tested per MIL-STD-883, Method 3015.4 /JESD22-A114-A (HBM). However, normal ESD precautions are still required during the handling of this module. This transceiver is shipped in ESD protective packaging. It should be removed from the packaging and handled only in an ESD protected environment.

14.Laser Safety

This is a Class 1 Laser Product according to EN 60825-1:2014. This product complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated (June 24, 2007).
