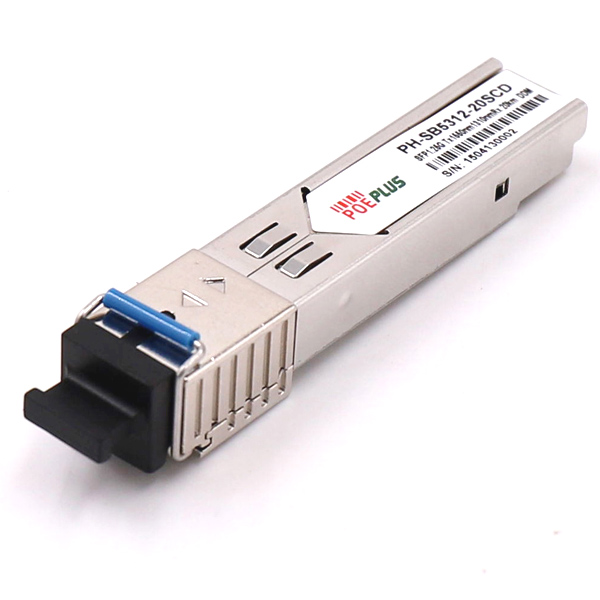

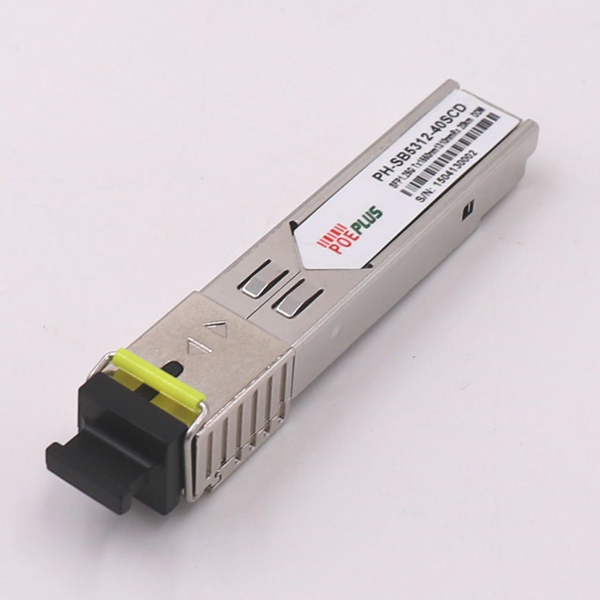

1.25G SFP BiDi SC T1310nm 20km

  • 1310nm FP laser transmitter and PIN photo-detector
  • Up to 1.25Gb/s data links
  • Up to 20km on 9/125µm SMF
  • Hot-pluggable SFP footprint
  • BIDI SC/UPC type pluggable optical interface

Thanks a lot for your inquiry and we will handle it as early as possible.

PH-SB3512-20SCD   Overview

The Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA), The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the FP laser and the PIN photo-detector .The module data link up to 20km in 9/125um single mode fiber.

PH-SB3512-20SCD   Specification



Features

  • Up to 1.25Gb/s data links
  • 1310nm FP laser transmitter and PIN photo-detector
  • Up to 20km on 9/125µm SMF
  • Hot-pluggable SFP footprint
  • BIDI SC/UPC type pluggable optical interface
  • Low power dissipation
  • Metal enclosure, for lower EMI
  • RoHS compliant and lead-free
  • Support Digital Diagnostic Monitoring interface
  • Single +3.3V power supply
  • Compliant with SFF-8472
  • Case operating temperature

Commercial: 0 ~ +70oC

Extended: -10 ~ +80oC

Industrial: -40 ~ +85oC

Applications

  • Switch to Switch Interface
  • Gigabit Ethernet
  • Switched Backplane Applications
  • Router/Server Interface
  • Other Optical Links

1. Absolute Maximum Ratings

It has to be noted that the operation in excess of any individual absolute maximum ratings might cause permanent damage to this module.

Parameter

Symbol

Min

Max

Unit

Notes

Storage Temperature

TS

-40

85

oC



Power Supply Voltage

VCC

-0.3

3.6

V



Relative Humidity (non-condensation)

RH

5

95

%



Damage Threshold

THd

5



dBm



2. Recommended Operating Conditions and Power Supply Requirements

Parameter

Symbol

Min

Typical

Max

Unit

Notes

Operating Case Temperature

TOP

0



70

oC

commercial

-10



80

extended

-40



85

industrial

Power Supply Voltage

VCC

3.135

3.3

3.465

V



Data Rate



1.25



Gb/s



Control Input Voltage High



2



Vcc

V



Control Input Voltage Low



0



0.8

V



Link Distance (SMF)

D



20

km

9/125um

3. General Description

The Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA), The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the FP laser and the PIN photo-detector .The module data link up to 20km in 9/125um single mode fiber.

The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.

4. Pin Assignment and Pin Description

Figure1. Diagram of host board connector block pin numbers and names

PIN

Name

Name/Description

Notes

1

VEET

Transmitter Ground (Common with Receiver Ground)

1

2

TXFAULT

Transmitter Fault.



3

TXDIS

Transmitter Disable. Laser output disabled on high or open.

2

4

MOD_DEF(2)

Module Definition 2. Data line for Serial ID.

3

5

MOD_DEF(1)

Module Definition 1. Clock line for Serial ID.

3

6

MOD_DEF(0)

Module Definition 0. Grounded within the module.

3

7

Rate Select

No connection required

4

8

LOS

Loss of Signal indication. Logic 0 indicates normal operation.

5

9

VEER

Receiver Ground (Common with Transmitter Ground)

1

10

VEER

Receiver Ground (Common with Transmitter Ground)

1

11

VEER

Receiver Ground (Common with Transmitter Ground)

1

12

RD-

Receiver Inverted DATA out. AC Coupled



13

RD+

Receiver Non-inverted DATA out. AC Coupled



14

VEER

Receiver Ground (Common with Transmitter Ground)

1

15

VCCR

Receiver Power Supply



16

VCCT

Transmitter Power Supply



17

VEET

Transmitter Ground (Common with Receiver Ground)

1

18

TD+

Transmitter Non-Inverted DATA in. AC Coupled.



19

TD-

Transmitter Inverted DATA in. AC Coupled.



20

VEET

Transmitter Ground (Common with Receiver Ground)

1

Notes:

1. Circuit ground is internally isolated from chassis ground.

2. Laser output disabled on TDIS >2.0V or open, enabled on TDIS <0.8V.

3. Should be pulled up with 4.7k - 10kohms on host board to a voltage between 2.0V and 3.6V.MOD_DEF (0) pulls line low to indicate module is plugged in.

4. This is an optional input used to control the receiver bandwidth for compatibility with multiple data rates (most likely Fiber Channel 1x and 2x Rates).If implemented, the input will be internally pulled down with > 30kΩ resistor. The input states are:

1) Low (0 – 0.8V): Reduced Bandwidth

2) (>0.8, < 2.0V): Undefined

3) High (2.0 – 3.465V): Full Bandwidth

4) Open: Reduced Bandwidth

5. LOS is open collector output should be pulled up with 4.7k - 10kohms on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.

5. Electrical Characteristics

The following electrical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Power Consumption

P



0.86

W

commercial



0.95

Industrial

Supply Current

Icc



260

mA

commercial



280

Industrial

Transmitter

Single-ended Input Voltage Tolerance

VCC

-0.3



4.0

V



Differential Input Voltage Swing

Vin,pp

200



2400

mVpp



Differential Input Impedance

Zin

90

100

110

Ohm



Transmit Disable Assert Time



5

us



Transmit Disable Voltage

Vdis

Vcc-1.3



Vcc

V



Transmit Enable Voltage

Ven

Vee-0.3



0.8

V



Receiver

Differential Output Voltage Swing

Vout,pp

500



900

mVpp



Differential Output Impedance

Zout

90

100

110

Ohm



Data output rise/fall time

Tr/Tf



100



ps

20% to 80%

LOS Assert Voltage

VlosH

Vcc-1.3



Vcc

V



LOS De-assert Voltage

VlosL

Vee-0.3



0.8

V



6. Optical Characteristics

Parameter

Symbol

Min.

Typical

Max

Unit

Notes

Transmitter

Center Wavelength

λC

1260

1310

1360

nm



Spectrum Bandwidth(RMS)

σ



3.5

nm



Average Optical Power

PAVG

-9



-3

dBm

1

Optical Extinction Ratio

ER

9



dB



Transmitter OFF Output Power

POff



-45

dBm



Transmitter Eye Mask



Compliant with 802.3z(class 1 laser safety)

2

Receiver

Center Wavelength

λC

1530

1550

1570

nm



Receiver Sensitivity (Average Power)

Sen.



-20

dBm

3

Input Saturation Power (overload)

Psat

-3



dBm



LOS Assert

LOSA

-36



dB

4

LOS De-assert

LOSD



-21

dBm

4

LOS Hysteresis

LOSH

0.5

2

6

dBm



The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.

Notes:

1. Measure at 2^7-1 NRZ PRBS pattern

2. Transmitter eye mask definition.

3. Measured with Light source 1310nm, ER=9dB; BER =<10^-12 @PRBS=2^7-1 NRZ

4. When LOS de-asserted, the RX data+/- output is High-level (fixed).

7. Digital Diagnostic Functions

The following digital diagnostic characteristics are defined over the Recommended Operating Environment unless otherwise specified. It is compliant to SFF8472 Rev10.2 with internal calibration mode. For external calibration mode please contact our sales staff.

Parameter

Symbol

Min.

Max

Unit

Notes

Temperature monitor absolute error

DMI_ Temp

-3

3

degC

Over operating temp

Supply voltage monitor absolute error

DMI _VCC

-0.15

0.15

V

Full operating range

RX power monitor absolute error

DMI_RX

-3

3

dB



Bias current monitor

DMI_ bias

-10%

10%

mA



TX power monitor absolute error

DMI_TX

-3

3

dB



8. Mechanical Dimensions

Figure2. Mechanical Outline
