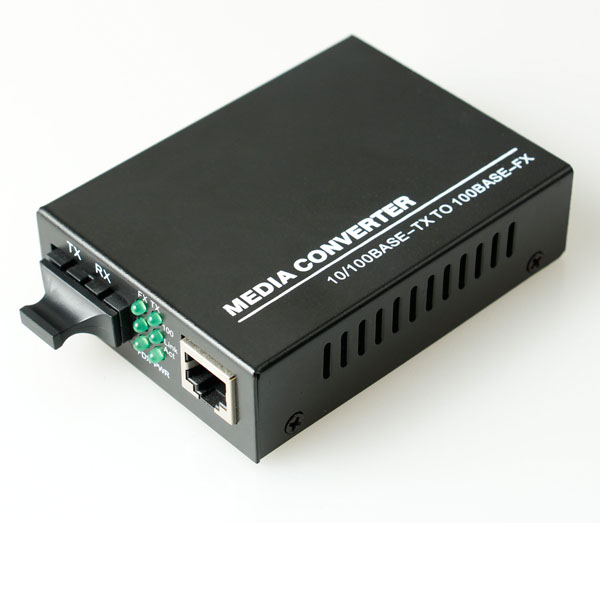

MC-100W

10/100Mbps media converter

Ethernet 10Base-T or 100Base-Tx to 100Base-Fx fiber media converter
Support IEEE 802.3u, IEEE 802.3x, IEEE 802.1d
Provide remote link loss diagnostics,TP port and FX port link connection diagnostic, dynamic data transmission, full / half duplex, rate indicator
Provide single RJ-45 port , and support automatically cross-recognition,
FX port with good feature, strong compatibility and high reliability, can be well compatible with Cisco, Nortel, 3COM etc

MC-100W Specification

Technical Specification
Product Name	10/100M Dual Fiber Media Converter
Model	ZX100W-FE
Description	10/100M 1 UTP Port Dual Fiber Ethernet Media Converter
Ports	1 10/100Mbps copper RJ45 Port + 1 10/100Mbps Fiber SC Port
Transmission Distance	20Km@single mode fiber； 2km@multimode fiber
Optical Fiber	Single Mode or multimode Dual Fiber,
Fiber Bandwidth	155M
Ethernet Bandwidth	10/100MHz
Network Media	10BASE-T: Cat.3, Cat.4, Cat.5 UTP Cable 100BASE-TX/1000BASE-TX：super cat.5 UTP Cable
Standards	IEEE 802.3i, IEEE 802.3u, IEEE 802.3x Flow Control, IEEE 802.1af DTE Power via MDI
Forward Mode	Store and Forward
Environment	Operating Temperature: -20°C~+70°C Storage Temperature: -45°C~+95°C Relative Humidity: 0~95% (non-condensing)
EMI Compatiblity	FCC Class A, CE
Total Power	2.5W (Input: DC5V 1000mA)
Power	AC100 ～ 240V,DC5V 1A
Dimensions	11×7×2.5cm (L x W x H)

Application

◆ Harsh industrial environment or higher requirements for lightning protection

◆ Urban Intelligent Traffic Monitoring System (ITS), Safe City

◆ highway monitoring system, electronic road monitoring, network cameras

◆ large industrial enterprise security monitoring systems, network multifunction system

◆ Remote multimedia teaching / campus monitoring, remote network video conference system
